Cushioned matting to help protect surfers while riding wave simulators.

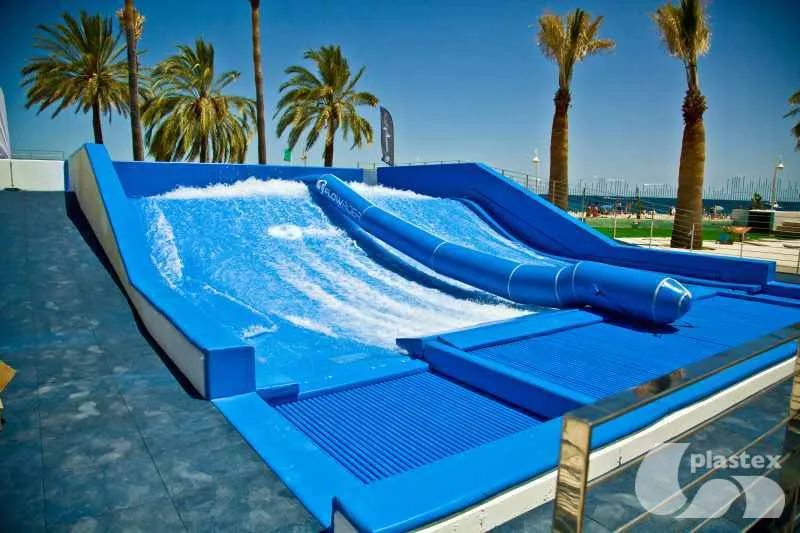

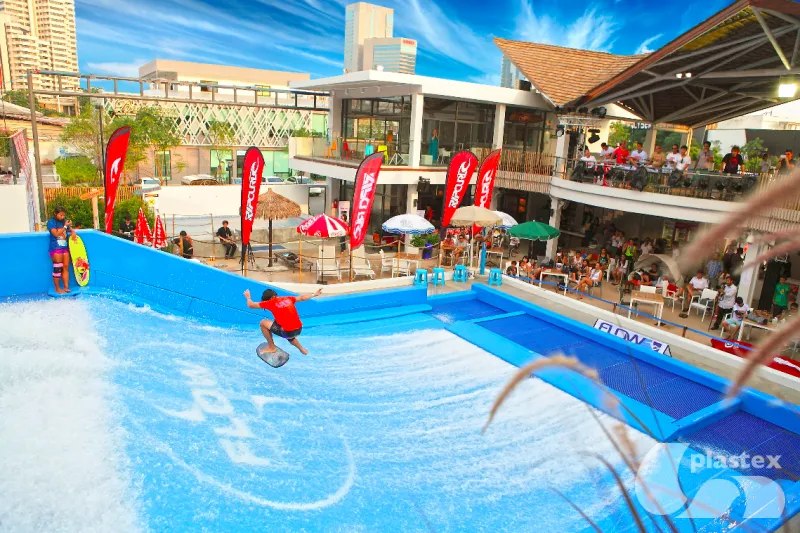

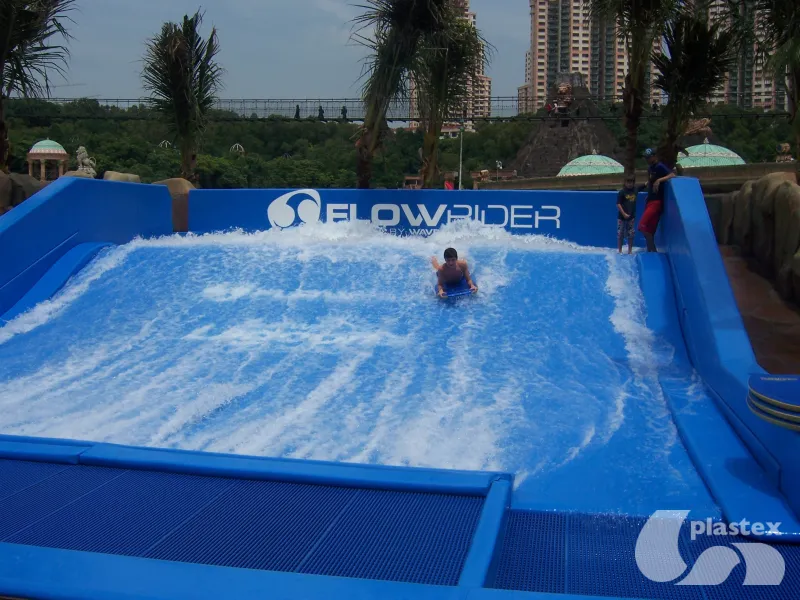

Designed to be placed over the metal grates at the back and front of surfing machines, PillogriD helps protect surfers while riding wave simulators.

A large open grid means exceptional drainage, while the soft vinyl and hollow tube construction provides extra cushioning and a safe landing. The large roll format removes the need for joints in action areas.

  • Flexible formatSupplied in rolls or factory welded panels for quick and easy installation
  • Simple installationEasy to trim to fit, contours to the subsurface
  • Easy to maintainHygienic, hard-wearing and UV resistant
Features And Benefits Tubular Construction 19
Hollow tube construction
Features And Benefits Reduces Fatigue 17
Soft landing
Features And Benefits Open Grid 36
Large open-grid format
Features And Benefits Excellent Drainage 04
High volume of drainage
Features And Benefits Hard Wearing 25
"D" profile for maximum weld strength
Features And Benefits Reduces Fatigue 17
Highly resistant and hard-wearing
Features And Benefits Comes In Rolls 12
Supplied in rolls or fabricated panels
Features And Benefits Easy Installation 09
Quick to install
Features And Benefits Uv Resistant 47
UV resistant
Features And Benefits Can Be Used Indoor And Outdoor 48
Can be used indoor and outdoor
Height3/4" (20mm)
Standard roll options16'6" x 2' (5 x 0.6m)
16'6" x 3' (5 x 0.91m)
33' x 2' (10 x 0.6m)
33' x 3' (10 x 0.91m)
Weight1.45 lb/sq.ft (7.1 kg/m2)
AcousticExcellent sound absorption properties
ChemicalResistant to most acids, alkalines and oils. You can read more about specific chemical resistances by downloading this information sheet.
CompositionFlexible DINP plasticised Polyvinyl Chloride (PVC)
EnvironmentPillogriD is 100% recyclable. We don’t use any substances included in the SVHC list under REACH in any of our matting products.
FireEN ISO 13501 - 1 : 2007 - Cfl - S1
HygieneMade from non-porous PVC that’s naturally resistant to bacteria growth.
ReversionThermoplastic shrinkage can result in size reductions up to 2%. This may be accelerated in hot environments. You can read more about the causes of shrinkage by downloading this information sheet.
ThermalDesigned to function at temperatures from -9°F and up to +140°F. Slight size variation may occur at temperature extremes.
WarrantyOne year. Visit our policies page for more information about warranties.

Bespoke panels

PillogriD is available in rolls for on site fabrication and installation. Alternatively, we can supply factory fabricated panels in one piece that allows for quick and easy unrolling and installation. Due to shipping and handling restrictions, the maximum dimension of these panels is 16'm (5m) on the shorter side.

PillogriD's one-piece construction means installation is simple

  • Made from flexible PVC
  • Supplied in rolls or fabricated panels
  • Simply trim to fit
  • Contours to uneven surfaces

Keeping PillogriD looking good is easy

  • Simply roll to clean
  • No special cleaning tools needed
