Frontrunner SB 01

Frontrunner SB


Solid-backed walk-off matting for interior and exterior areas without a mat well.

Download Data Sheet

No mat well? No problem: Frontrunner SB is a solid-back entrance mat designed to be loose laid over your existing floor coverings.

The ribbed entrance mat scrapes shoes and wheels clean, while the grid traps and collects debris. This helps to prevent dirt being tracked inside, which helps to reduce cleaning intervals and keeps interiors looking stylish for longer.

Slip resistant, wheel-proof and heel-proof, Frontrunner SB has excellent rolling resistance, making it the ideal walk-off matting for commercial buildings, grocery stores and shopping centers with high foot traffic.

Installation is simple. Adhere directly to the floor to create a surface-mounted walk-off mat, or place this loose lay matting directly over your existing floor to create a slip-resistant walkway – no mat well required.

Seamless integration

Comes in 33’ (10m) rolls or order a custom size

Simple installation

Simply roll out and cut to fit on site; contours to uneven surfaces.

Easy to maintain

This solid mat is light to handle; no special cleaning tools needed

Features + benefits

Features

Textured Surface

Etched pattern

One Layer Construction

One-layer, hollow construction

Ribbed Surface

Ribbed vinyl pattern with solid backing

Elevated Surface

1⁄4” (6mm) grid height

Close Mesh Grid

Close mesh grid

Benefits

Slip Resistant

Certified slip resistant (DIN 51130: R11, ASTM C1028: 0.6/0.6)

Lightweight

Light to handle

Easy Installation

Easy to install, no need for recessed mat well

Loose Lay

Loose lay or adhere to subfloor

Wheel And Heel Proof

Wheel and heel proof

Standard sizes
Frontrunner SB
Height1/4" (6.5mm)
Standard roll options33' x 3'3’ (10 x 1m)
Weight1.3lb/sq.ft (6.3 kg/m2)
Technical info
AcousticExcellent sound absorption
ChemicalResistant to most acids, alkalines and oils. You can read more about specific chemical resistances by downloading this information sheet.
CompositionFlexible Polyvinyl Chloride (PVC)
EnvironmentFrontrunner SB is 100% recyclable. Our Frontrunner Entrance matting System qualifies for LEED IEQ Credit 5, and when produced in black or gray, Frontrunner may also qualify for LEED MR Credit 4. We don’t use any substances included in the SVHC list under REACH in any of our matting products.
FireEN ISO 13501-1:2007-Cfl-S1, ASTM E648 – Class 2
ReversionThermoplastic shrinkage can result in size reductions up to 2%. This may be accelerated in hot environments. You can read more about the causes of shrinkage by downloading this information sheet.
Rolling loadASTM F 2753: No apparent damage to the vinyl portion of the system after 1,000 cycles at 500lbs
Slip resistance

ASTM E303 Dry/Wet with lines along–lines across 74-95 / 61-74
DIN 51130: R11, V10

ThermalDesigned to function at temperatures from -9°F and up to +140°F. Slight size variation may occur at temperature extremes.
UV lightResistant to PVC degradation
WarrantyThree years. Visit our policies page for more information about warranties.
Ancillaries
PVC edging (SB / SB+)

PVC edging (SB / SB+)


Supplied in rolls of 33’ (10.1m) length. One tube of cold welding paste recommended for every 33' of edging. Comes in black and dark gray. Size: 1/4" x 1" x 197' (6.5mm x 30mm x 60m)

PVC joining strip (SB / SB+)

PVC joining strip (SB / SB+)


Can be welded to join rolls end-to-end or side-to-side when doing large installations. Comes in black. Size: 1/8" x 11'9" (3.5mm x 3.6m)

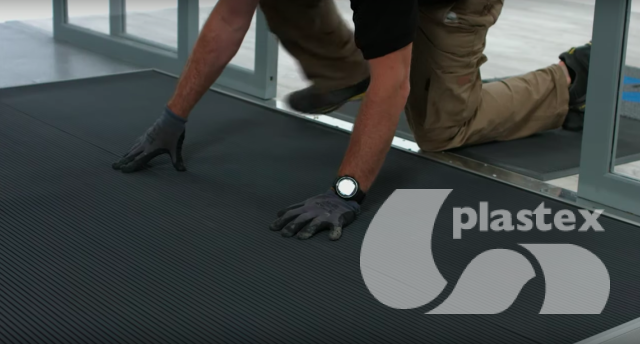

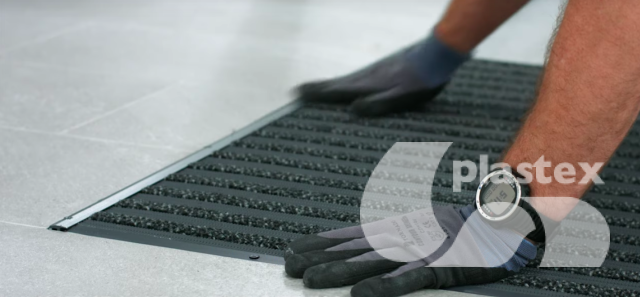

Installation

Frontrunner SB's one-piece construction means installation is simple

There are two ways to install SB: you can adhere directly to the floor, or loose lay modules with PVC edging. For large installations with medium to high traffic, we recommend adhering your mat using F Ball’s Styccobond F73 PLUS, which is a single-part, heavy-duty adhesive that provides high bond strength.

Watch the videos below for a step-by-step installation guide, or download the installation instructions here.

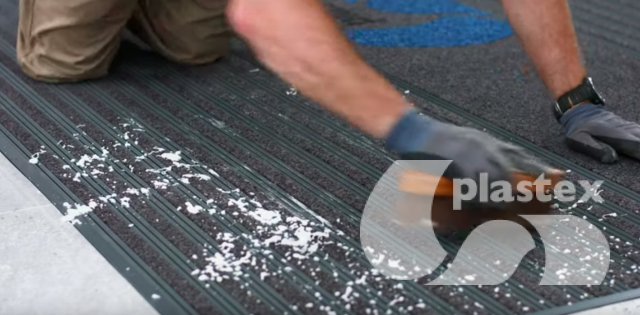

Cleaning

Keeping Frontrunner SB looking good is easy

  • Light to handle
  • Simply roll or lift to clean
  • No special tools needed
  • Quick and easy to clean because of the solid backing


Watch our step-by-step guide to daily, weekly and monthly cleaning below or download the cleaning instructions here.


BIM objects

Download our BIM objects in both Revit and IFC file types

Seen something you like? Frontrunner SB


We’re always here to help. Fill out the below form and we’ll be in touch within 48 hours.

SIMILAR PRODUCTS YOU MAY LIKE


Looking for dirt and moisture removal? Try SB+, a solid-backed entrance mat with carpet inserts:
