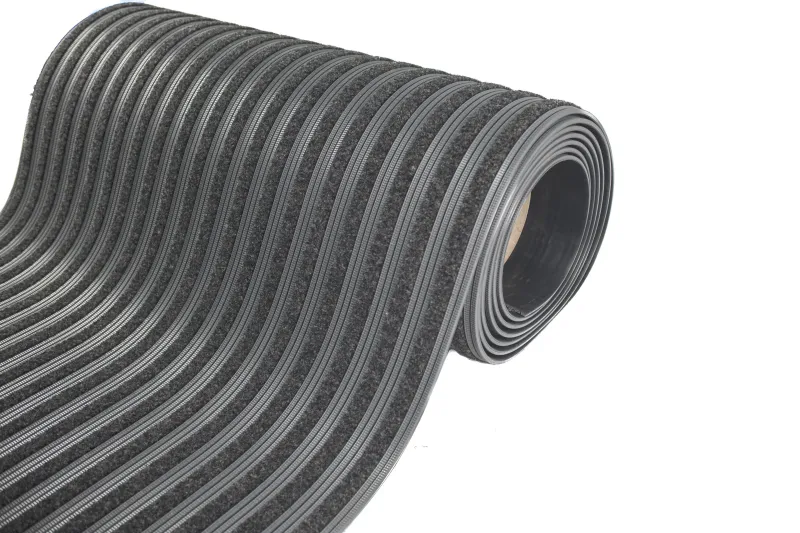

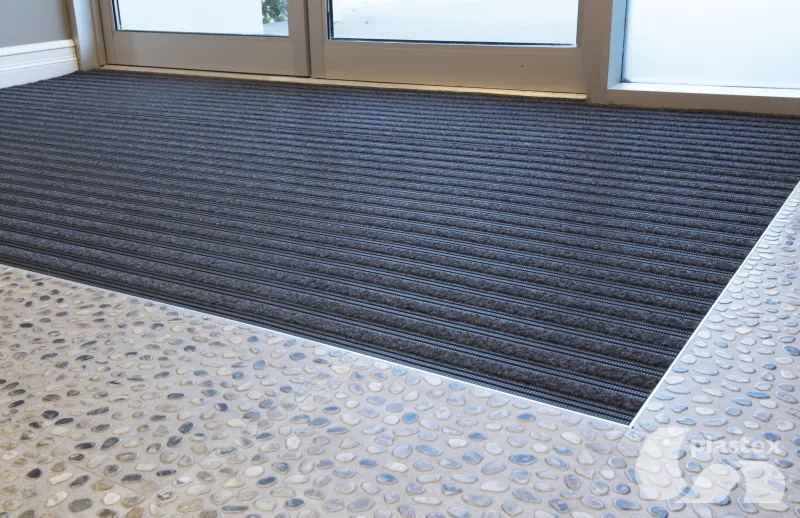

Designed for internal areas with high traffic, Gateway SB+ (Frontrunner SB+) is a low-profile, solid-backed, ribbed entrance mat that requires no recessed mat well.

SELECT A COLOUR:

SELECT A CARPET:

Simply roll out, cut to fit and lay it within your existing entrance carpet tiles or luxury vinyl tiles. The PVC edges means you can also place this ribbed carpet entrance matting directly on your current floor to create a walkway or surface module mat.

The mat's etched pattern removes dirt while the heavy-duty absorbent inserts absorb moisture, reducing the amount of dirt that’s walked into your building.

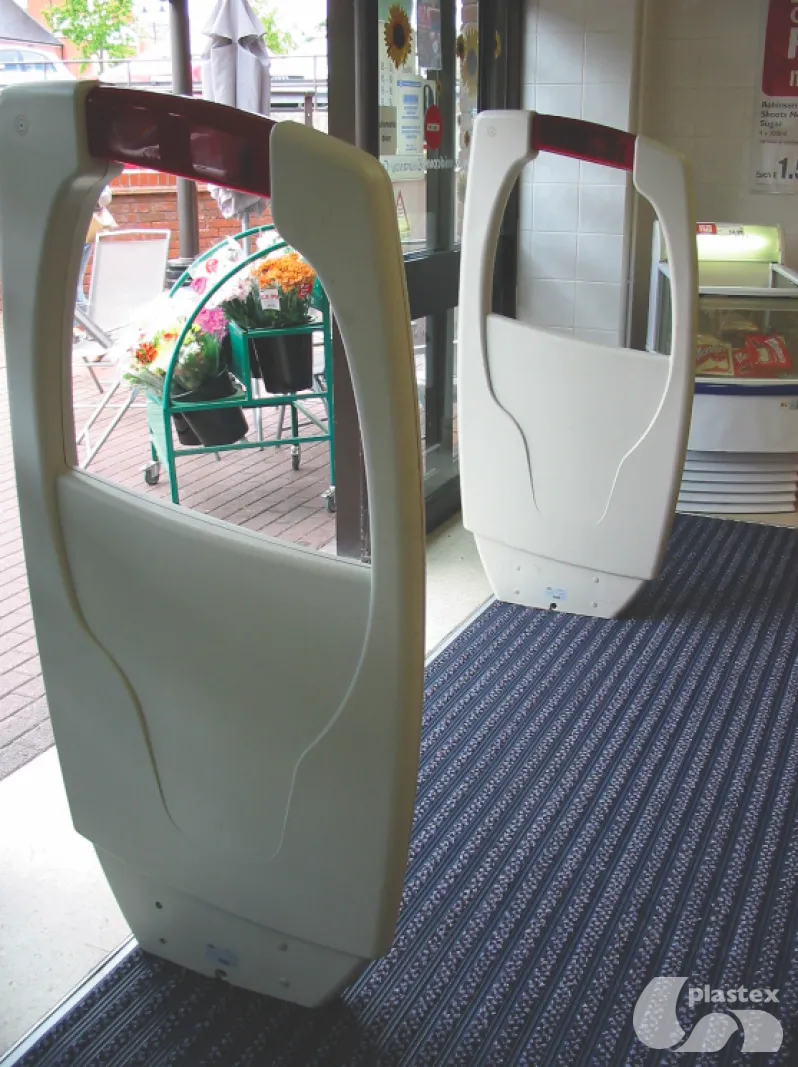

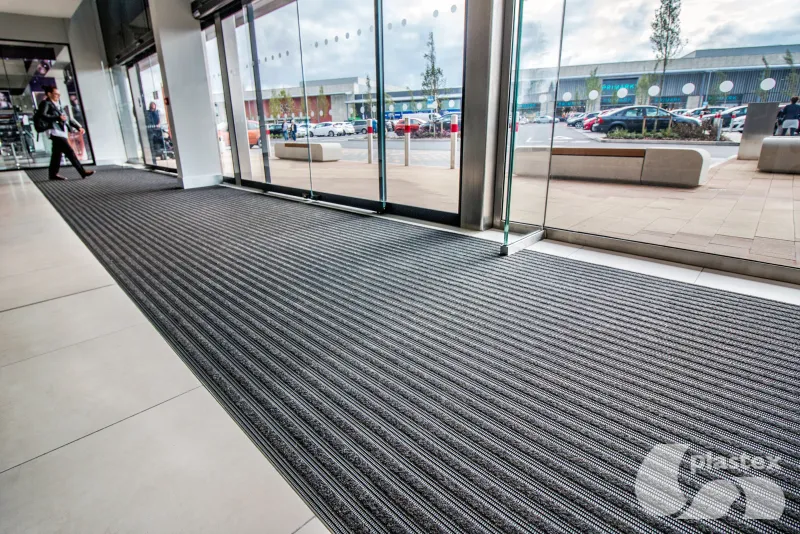

Wheel- and heel-proof, and resistant to rolling, this heavy-duty ribbed entrance matting is ideal for use in commercial buildings and shopping centres.

Seamless integration

Comes in 10m (33") rolls or order a custom size

Simple installation

Simply roll out and cut to fit on site; contours to uneven surfaces

Easy to maintain

Light to handle; no special cleaning tools needed

Download

Also in this range is Gateway SB, solid-backed entrance matting without carpet inserts.

Features

Textured Surface
Etched pattern

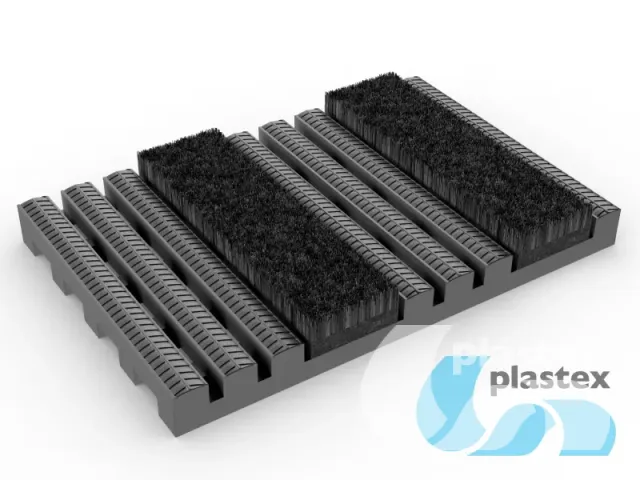

One Layer Construction
One layer hollow construction
Ribbed Surface
Ribbed vinyl pattern with solid backing
Elevated Surface
6.5mm grid height
Close Mesh Grid
Close mesh grid

Benefits

Slip Resistant
Certified slip resistant (DIN 51130: R11, ASTM C1028: 0.6/0.6)
Lightweight
Light to handle
Easy Installation
Easy to install, no need for recessed mat well
Loose Lay
Loose lay or adhere to subfloor
Wheel And Heel Proof
Wheel proof and heel proof
Standard sizes
arrow_left [#335] Created with Sketch.
Gateway SB+
Height6.5/8mm (1/4"-5/16")
Standard roll option10 x 1m (33' x 3'3’)
Standard module option1 x 1.5m (3'3" x 4'11")
Weight6.3 kg/m2 (1.3lb/sq.ft)

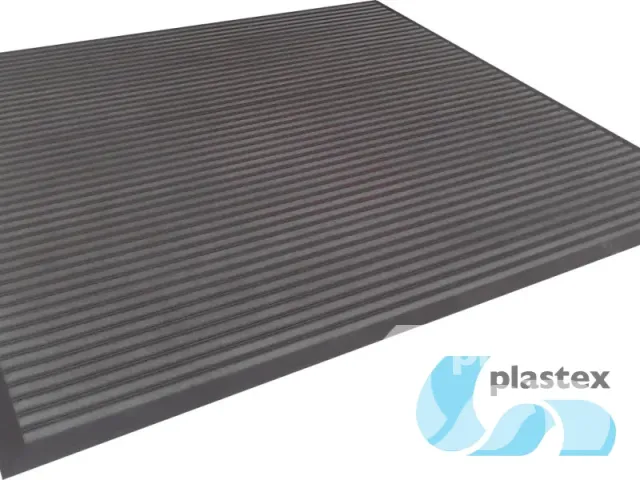

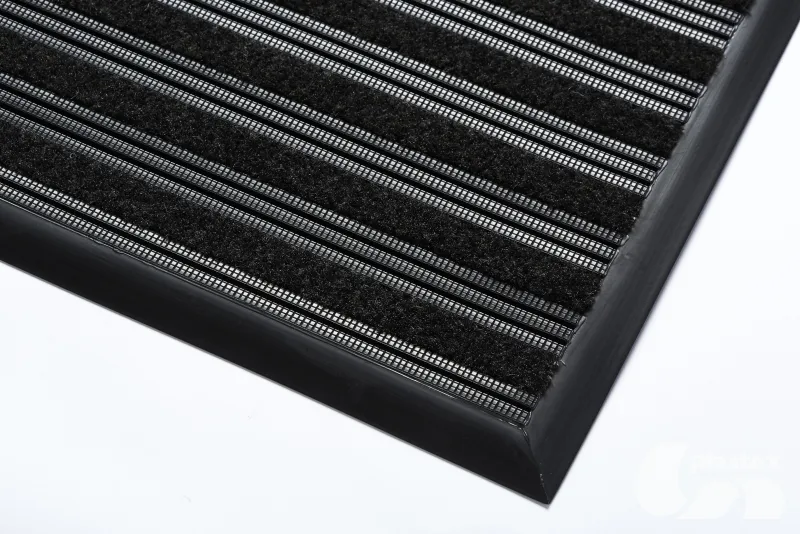

Surface modules are supplied with factory fitted PVC ramped edging to four sides

Technical info
arrow_left [#335] Created with Sketch.

PVC BACKING:

Acoustic Excellent sound absorption.
Chemical Resistant to most acids, alkalines and oils. You can read more about specific chemical resistances by downloading this information sheet.
Composition Flexible Polyvinyl Chloride (PVC)
Environment We don’t use any substances included in the SVHC list under REACH in any of our matting products.
Fire EN ISO 13501-1:2007-Cfl-S1, ASTM E648, Class 2
Reversion Thermoplastic shrinkage can result in size reductions up to 2%. This may be accelerated in hot environments. You can read more about the causes of shrinkage by downloading this information sheet.
Rolling resistance ASTM F 2753: 0.080 in loss of thickness after 1,000 cycles at 500lbs.
Slip resistance

ASTM E303 Dry/Wet with lines along–lines across 74-95 / 61-74
DIN 51130: R11, V10

Thermal Designed to function at temperatures from -23°C and up to +60°C. Slight size variation may occur at temperature extremes.
UV light Resistant to PVC degradation
Warranty Three years. Visit our policies page for more information about warranties.


ABSORBENT INSERTS (ZENO 600 SERIES):

Wear classificationEN 1307 - 33, Commercial heavy
Pile materialECONYL® , 100% regenerated polyamide BCF tuft base
Tuft base100% regenerated non woven polyester Colback™
Phthalate Free backingWaterproof Comfort™ vinyl
Total heightEN 1765 ± 8.7 mm
Pile heightEN 1766 ± 6.7 mm
Total weightEN 8543 ± 4260 g/m²
Pile yarn weight± 820 g/m²
Pile density± 0,127 g/cm³
FireEN ISO 13501-1:2007 Cfl-S1

Suitable for castor chairs

EN 985 A, intensive use r=2.8

Colours

10
Ancillaries
arrow_left [#335] Created with Sketch.
PVC edging (SB / SB+)

PVC edging (SB / SB+)

Supplied in rolls of 60m (197") length. One tube of cold welding paste recommended for every 10m of edging. Comes in black and dark grey. Size: 6.5mm x 30mm x 60m (1/4" x 1" x 197')

PVC joining strip (SB / SB+)

PVC joining strip (SB / SB+)

Can be welded to join rolls end-to-end or side-to-side when doing large installations. Comes in black. Size: 3.5mm x 3.6m (1/8" x 11'9")

Installation

arrow_left [#335] Created with Sketch.

Gateway SB+'s one-piece construction means installation is simple

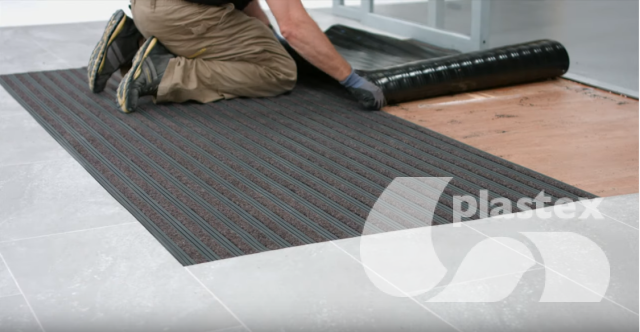

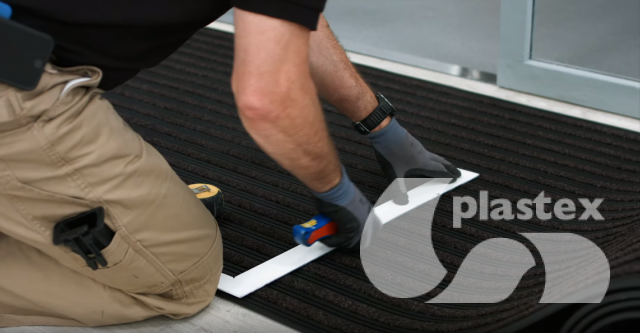

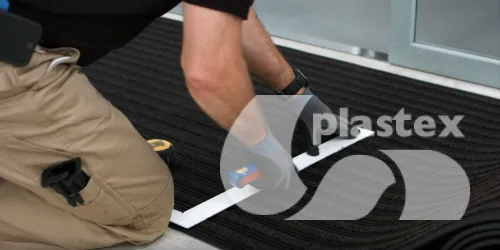

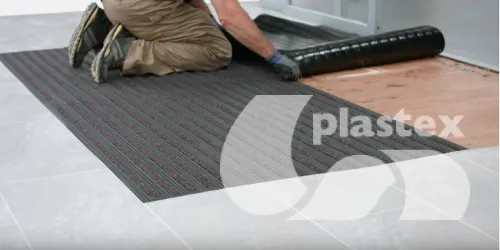

There are two ways to install SB: you can adhere directly to the floor, or loose lay modules with PVC edging. For large installations with medium to high traffic, we recommend adhering your mat using F Ball’s Styccobond F73 PLUS, which is a single-part, heavy-duty adhesive that provides high bond strength.

Watch the videos below for a step-by-step installation guide, or download the installation instructions here.

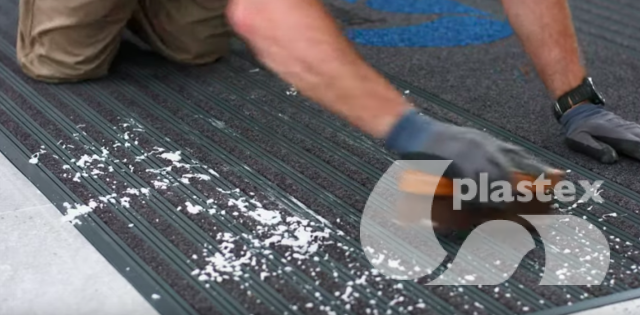

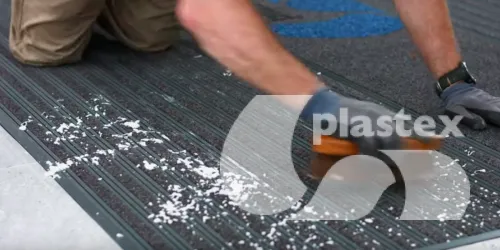

Cleaning

arrow_left [#335] Created with Sketch.
BIM objects
arrow_left [#335] Created with Sketch.

Download our BIM objects in both Revit and IFC file types

Interested in Gateway SB+?

We’re always here to help. Fill out the below form and we’ll be in touch within 48 hours.
