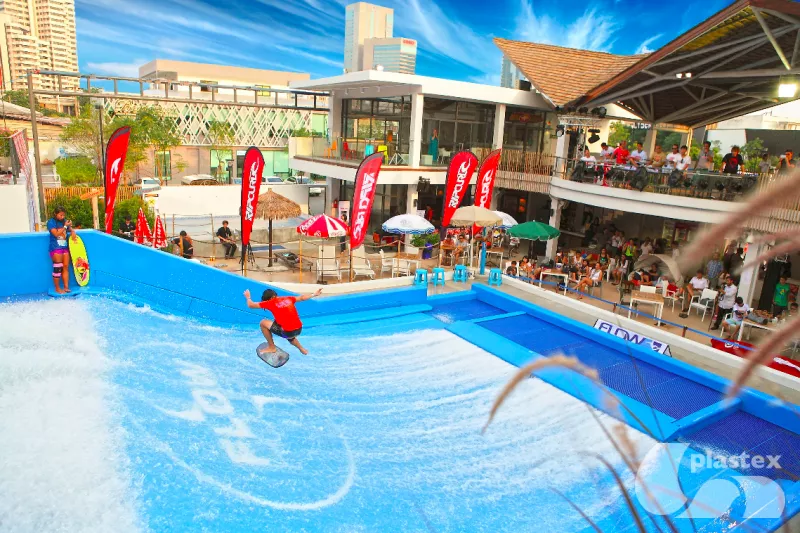

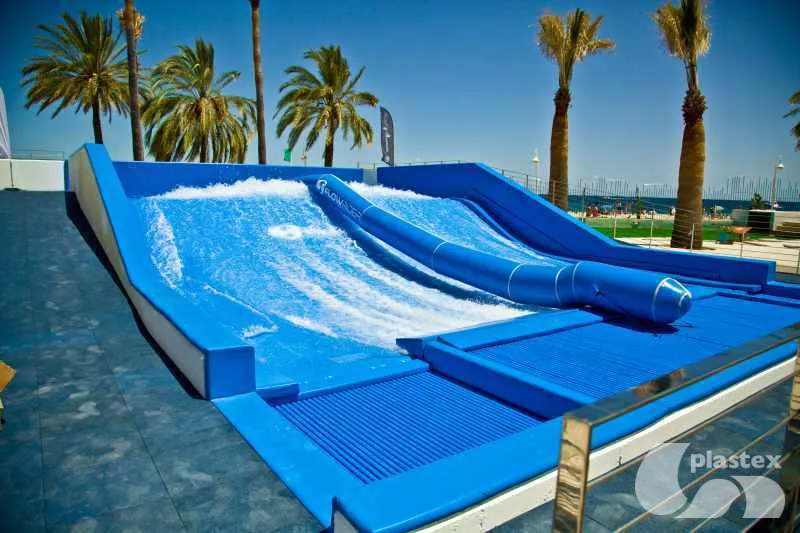

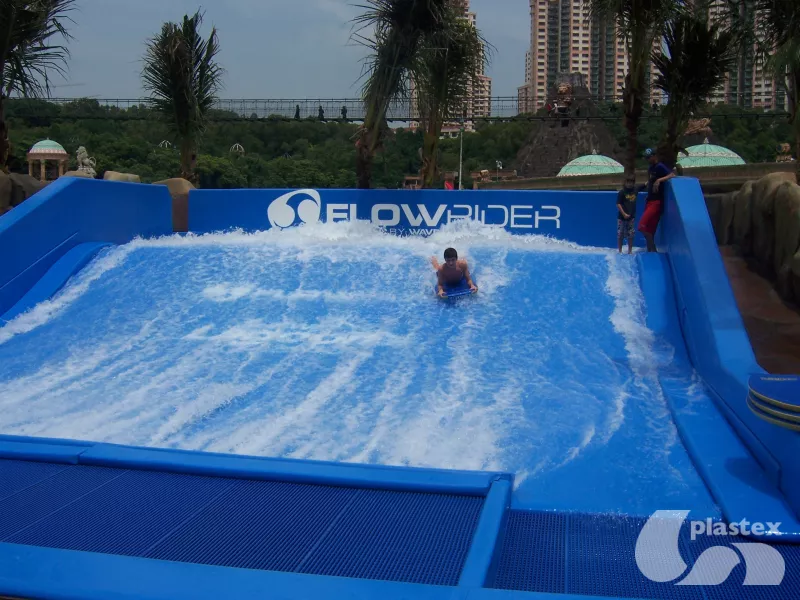

Designed specifically to be placed over metal grates at both the back and front of surf simulator machines, this drainage floor mat helps protect board riders while riding wave simulators.


The soft vinyl and hollow tube construction provides extra cushioning, while the large open grid delivers exceptional drainage, making PillogriD the ideal safety drainage mat for wave machines. The large roll format also negates the need for joints in action areas.

Flexible format

Supplied in rolls or factory welded panels for quick and easy installation

Simple installation

Easy to trim to fit, contours to the subsurface

Easy to maintain

Hygienic, hard-wearing and UV resistant


Tubular Construction
Hollow tube construction
Open Grid
Large open grid format
Hard Wearing
"D" profile for maximum weld strength
Comes In Rolls
Supplied in rolls or fabricated panels
UV Resistant
UV resistant


Reduces Fatigue
Soft landing
Excellent Drainage
High volume drainage
Reduces Fatigue
Highly resistant and hard-wearing
Easy Installation
Quick to install
Can Be Used Indoor And Outdoor
Can be used indoor and outdoor
Standard sizes
arrow_left [#335] Created with Sketch.
Height20mm (3/4")
Standard roll options10 x 0.91m (33' x 3')
10 x 1m (33' x 3'3")
Weight7.1 kg/sq/m (1.45 lb/sq.ft)
Technical info
arrow_left [#335] Created with Sketch.
AcousticExcellent sound absorption properties.
ChemicalResistant to most acids, alkalines and oils. You can read more about specific chemical resistances by downloading this information sheet.
CompositionFlexible Polyvinyl Chloride (PVC).
EnvironmentPillogriD is 100% recyclable. We don’t use any substances included in the SVHC list under REACH in any of our matting products.
FireEN ISO 13501 - 1 : 2007 - Cfl - S1
HygieneMade from non-porous PVC that’s naturally resistant to bacteria growth.
ReversionThermoplastic shrinkage can result in size reductions up to 2%. This may be accelerated in hot environments. You can read more about the causes of shrinkage by downloading this information sheet.
ThermalDesigned to function at temperatures from -23°C and up to +60°C. Slight size variation may occur at temperature extremes.
WarrantyOne year. Visit our policies page for more information about warranties.
arrow_left [#335] Created with Sketch.
Ancillaries Pillogrid Bespoke Size Panels

Bespoke panels

PillogriD is available in rolls for on site fabrication and installation. Alternatively, we can supply factory fabricated panels in one piece that allows for quick and easy unrolling and installation. Due to shipping and handling restrictions, the maximum dimension of these panels is 5m (16') on the shorter side
