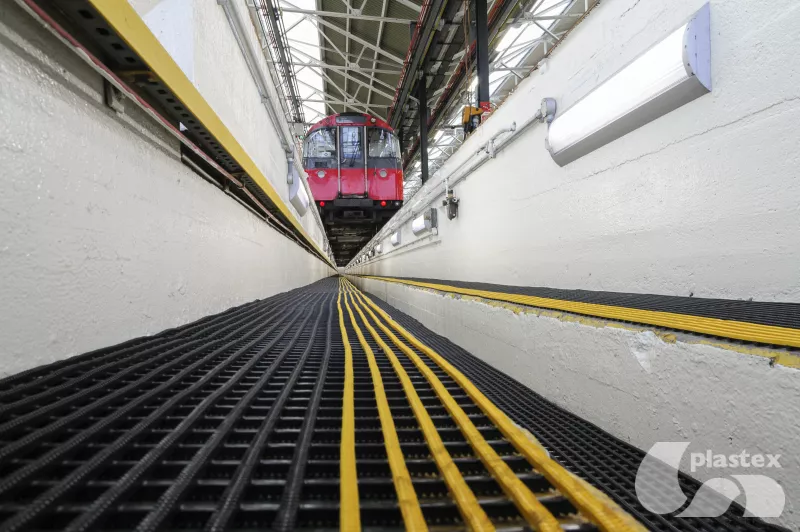

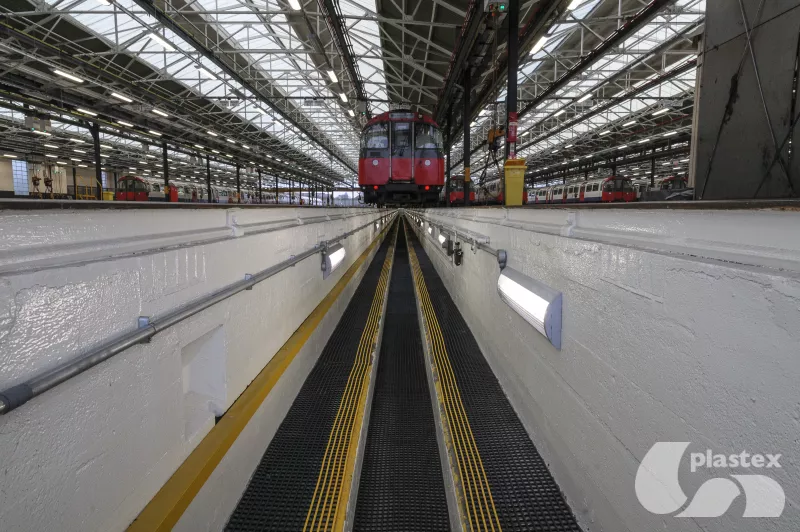

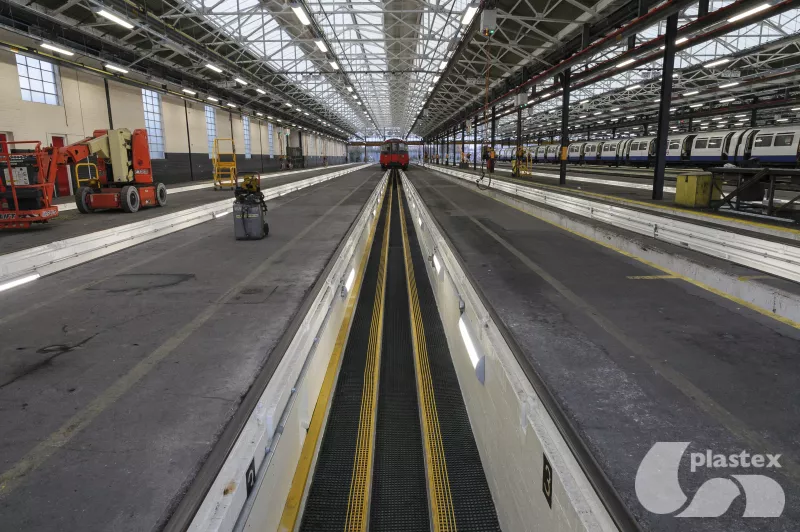

Trackgrip is designed for railway maintenance areas and construction sites.

Trackgrip


Extra wide heavy-duty plastic matting that’s custom-made for greasy and grimy environments.

Trackgrip grease-resistant floor mats offer the perfect defence against grease, grime and oil.

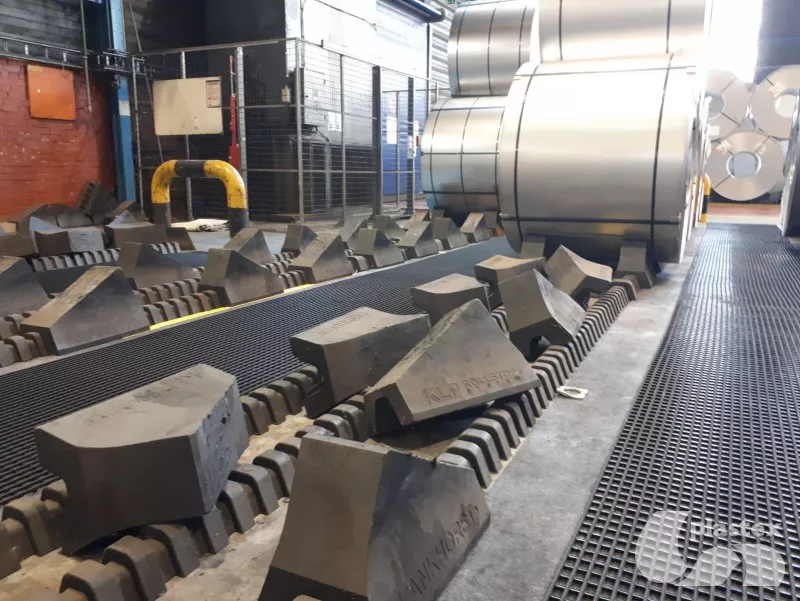

Made from non-porous PVC with a two-layer construction, this heavy-duty plastic matting is impermeable to fluids and offers excellent drainage due to its wide grid design. This makes Trackgrip ideal for use as warehouse floor mats, or in any environment where oil and chemical spills are likely, such as railway maintenance areas, construction sites and processing plants.

Trackgrip also features a diamond-cut pattern that provides quality slip resistance underfoot, making the area safer overall for both employees and visitors.

Flexible format

Comes in 10m (33') rolls

Quick installation

Roll out and cut to fit on site; contours to uneven surfaces

Simple to maintain

Easy to clean with a high pressure hose

Features + benefits

Features

Diamond Cut Pattern

Diamond cut pattern

Two Layer Construction

Two-layer construction and extra-wide spacing

Made From Non Porous PVC

Made from non-porous PVC

Comes In Rolls

Comes in 10m (33') rolls

Made From Flexible PVC

Made from flexible PVC

Benefits

Slip Resistant

Certified slip resistant (DIN 51130: R11 ASTM 1677: 0.9/0.7)

Excellent Drainage

Excellent drainage (DIN 51130: V10)

Chemical Oil And Acid Resistant

Resistant to chemicals, acids, oils

Easy Installation

Quick to install

Easy To Clean

Easy to clean with a high pressure hose

Standard sizes
TrackgripTrackgrip Plus
Height15mm (5/8")15mm (5/8")
Standard roll options10 x 0.6m (33' x 2’)10 x 0.6m (33' x 2’)
10 x 0.91m (33' x 3’)10 x 0.91m (33' x 3’)
10 x 1.22m (33' x 4')10 x 1.22m (33' x 4')
Weight4.6kg/m2 (0.94lb/sq.ft)4.6kg/m2 (0.94lb/sq.ft)
Technical info
AcousticExcellent sound absorption.
ChemicalResistant to most acids, alkalines and oils. You can read more about specific chemical resistances by downloading this information sheet.
CompositionFlexible Polyvinyl Chloride (PVC).
EnvironmentTrackgrip is 100% recyclable. When manufactured in black, it’s made using our post industrial recycled material. The recycled content averages at least 30%, but we strive for 100% wherever possible. We don’t use any substances included in the SVHC list under REACH in any of our matting products.
HygieneMade from non-porous PVC that’s naturally resistant to bacteria growth.
ReversionThermoplastic shrinkage can result in size reductions up to 2%. This may be accelerated in hot environments. You can read more about the causes of shrinkage by downloading this information sheet.
Slip resistance

ASTM E303 Dry/Wet with lines along–lines across 75-98 / 59-79

DIN 51130: R11, V10
ThermalDesigned to function at temperatures from -23°C and up to +60C. Slight size variation may occur at temperature extremes.
UV lightResistant to PVC degradation.
WarrantyThree years. Visit our policies page for more information about warranties.
Ancillaries
PVC edging (H: 14mm, W: 60mm)

PVC edging (H: 14mm, W: 60mm)


Supplied in rolls of 10.1m (33') length with cold welding paste. Comes in black, dark grey, dark brown, holly green, Oxford blue, yellow. Size: 14mm x 60mm x 10.1m (9/16" x 2 1/2" x 33')

Aluminium edging (H: 14mm)

Aluminium edging (H: 14mm)


Supplied in sections of 2m (6'6") length with fixing screws and plugs. Comes in anodised aluminium and powder coated yellow. Size: 14mm x 45mm x 2m (5/8" x 1 13 /16" x 6'6")

Small floor hook (H: 14mm)

Small floor hook (H: 14mm)


For securing sections of matting to the floor. Supplied in packs of 20 with screws and plugs.

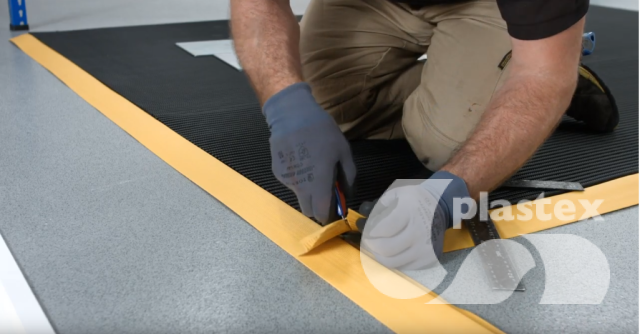

Installation

Trackgrip's one-piece construction means installation is simple

  • Comes in 10m rolls, ideal for covering large areas
  • Quick and easy to cut to fit on site
  • No special tools needed
  • Contours to uneven surfaces

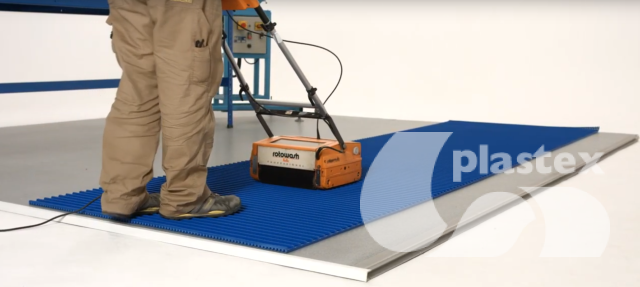

Cleaning

Keeping Trackgrip looking good is easy

  • Easy to handle
  • Roll or lift to clean
  • Simply clean with a high pressure hose
