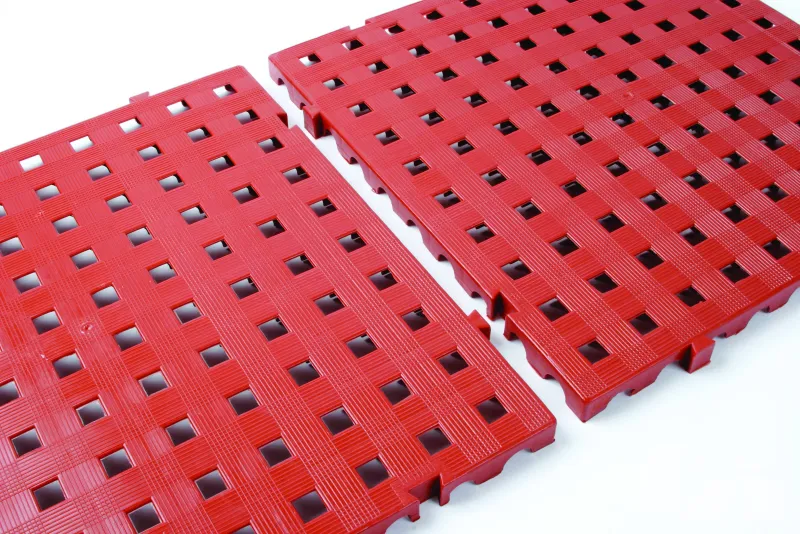

Ideal for covering large areas in industrial workplaces, Plastex Grid industrial tiles feature an easy lock-fit connection and a heavy-duty open grid design that sets them apart from other industrial floor mats.

The open grid can withstand weights up to 50t/m2, and also delivers excellent drainage, making it the ideal choice for industrial workplaces where there’s a risk of detergents, industrial chemicals and acids being spilled. The heavy-duty interlocking tiles are easily clicked into place, sitting at a raised height of 25mm to create an elevated work surface that's flexible but hard-wearing.

Flexible format

Comes in 50 x 50cm tiles with a raised height of 25mm

Simple installation

Tiles easily and securely lock into place

Easy to maintain

Simply lift to clean, no special tools needed


Also available in a tiled format is Plastex Lok, an open-grid mat with a dimpled surface and Plastex Chex, a closed-grid mat with a checker-plate design.


Elevated Surface
25mm raised surface
Open Grid
Open grid
Textured Surface
Textured design
Hard Wearing
Made from rigid polyethylene
Tiles Lock Into Place
Secure 'lock fit' connection


Provides Surface Protection
Surface protection; reduces fatigue
Removes Moisture
Removes large quantities of liquids
Slip Resistant
Provides good slip resistance
Withstands Weights Up To 50Tm2
Withstands weights up to 50T/m2
Easy Installation
Easy to install, can be moved around as needed
Standard sizes
arrow_left [#335] Created with Sketch.
Plastex Grid
Height25mm (1")
Standard tile size50 x 50cm (1'8" x 1'8")
Weight3.6kg/m2 (0.7lb/sq.ft)
Technical info
arrow_left [#335] Created with Sketch.
ChemicalResistant to most acids, alkalines and oils. You can read more about specific chemical resistances by downloading this information sheet.
CompositionMade from linear low density polyethylene (LLDPE).
HygieneMade from non-porous 100% LLDPE (linear low-density polyethylene), which inhibits the growth of bacteria.
ThermalDesigned to function at temperatures from -60°C and up to +70°C. Slight size variation may occur at temperature extremes.
WarrantyTwo years. Visit our policies page for more information about warranties.
arrow_left [#335] Created with Sketch.
Aluminium edging (H: 25mm)

Aluminium edging (H: 25mm)

Supplied in sections of 2m (6'6") length with fixing screws and plugs. Comes in anodised aluminium. Size: 25mm x 66mm x 2m (1" x 2 3/4" x 6'6")


arrow_left [#335] Created with Sketch.

Plastex Grid's 'lock fit' connection means installation is simple

  • The tiles easily and securely lock into place
  • Creates a raised 25mm work surface
  • Effectively covers large areas
  • No special tools or previous site visits needed for installation

Download a step-by-step installation guide below:


arrow_left [#335] Created with Sketch.

Keeping Plastex Grid looking good is easy

  • Light to handle
  • Simply lift to clean
  • Easy to clean with a high pressure hose
