Frontrunner XT is slip-resistant matting perfect for high traffic exterior and interior areas.

Gateway XT


Slip-resistant, heavy-duty outdoor entrance mat perfect for areas with lots of foot traffic.

Download Data Sheet

Gateway 14 XT (Frontrunner XT) is a heavy-duty commercial entrance mat designed to combat substantial amounts of dirt and large debris.

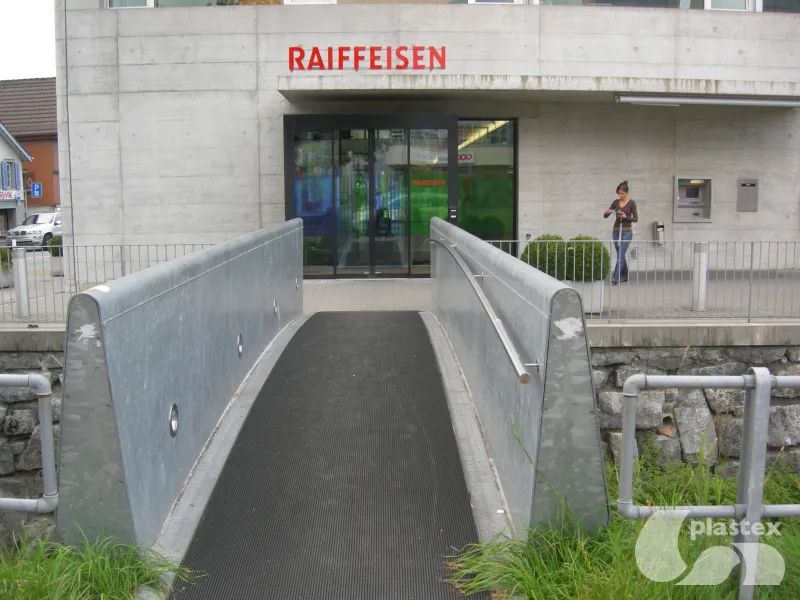

The deep-etched tread scrapes shoes and wheels clean, while the heel-proof open grid traps and collects debris, preventing it from coming inside. This extra slip-resistant, heavy-duty outdoor entrance mat is ideal for walkways like bridges and hardwood decking that tend to get slippery in wet and icy weather.


You can use Gateway 14 XT inside and outside, or combine with another product from our extensive Gateway entrance matting range, such as Gateway 14 Plus, designed for high traffic inside areas.

Seamless integration

Choose from rolls in standard widths and 10m (33') lengths or order a custom size. Can be used as an interior or exterior matting.

Simple installation

One-piece construction means you can cut to fit on site, with no previous site visits needed.

Easy to maintain

Simply roll or lift to clean, no special tools needed

Features + benefits

Features

Diamond Cut Pattern

Diamond cut pattern

Open Grid

Two layer, open-grid construction

Close Mesh Grid

Close mesh grid

Made From Flexible PVC

Made from flexible PVC

Comes In Rolls And Modules

Comes in 10m (33') rolls

Benefits

Slip Resistant

Certified slip resistant (DIN 51130: R12)

Excellent Drainage

Excellent drainage (DIN 51130: V10)

Wheel And Heel Proof

Wheel- and heel-proof

Easy To Cut To Fit On Site

Easy to cut on site, contours to uneven surfaces

Easy Installation

Seamless installation

Standard sizes
Gateway 14 XTGateway 10 XT
Height14mm (9/16")10.5mm (13/32")
Standard roll options10 x 0.6m (33' x 2’)10 x 0.6m (33' x 2')
10 x 0.91m (33' x 3’)10 x 0.91m (33' x 3')
5 x 1.2m (16'6" x 4’)5 x 1.2m (16'6" x 4')
Weight10.5kg/m2 (2lbs/sq.ft)8.7kg/m2 (1.8lb/sq.ft)
Technical info
AcousticExcellent sound absorption.
ChemicalResistant to most acids, alkalines and oils. You can read more about specific chemical resistances by downloading this information sheet.
CompositionFlexible Polyvinyl Chloride (PVC).
EnvironmentGateway XT is 100% recyclable. We don’t use any substances included in the SVHC list under REACH in any of our matting products.
FireEN ISO 13501-1:2007-Bfl-S1, ASTM E648, Class 1
ReversionThermoplastic shrinkage can result in size reductions up to 2%. This may be accelerated in hot environments. You can read more about the causes of shrinkage by downloading this information sheet.
Slip resistance

ASTM E303 Dry/Wet with lines along–lines across 77-94 / 58-71
DIN 51130: R12, V10

DIN 51130: R11, V10 (Frontrunner XT Low Profile)
ThermalDesigned to function at temperatures from -23°C and up to +60°C. Slight size variation may occur at temperature extremes.
UV lightResistant to PVC degradation.
WarrantyGateway 14 XT: four years. Gateway 10 XT: Two years.
Visit our policies page for more information about warranties.
Ancillaries

For surface-mounted installations: Gateway 14 XT

PVC edging (H: 14mm, W: 60mm)

PVC edging (H: 14mm, W: 60mm)


Supplied in rolls of 10.1m (33') length. One tube of cold welding paste recommended for every 10m of edging. Comes in black, dark grey, dark brown, holly green, Oxford blue, yellow. Size: 14mm x 60mm x 10.1m (9/16" x 2 1/2" x 33')

Aluminium edging (H: 14mm)

Aluminum edging (H: 15mm)


Supplied in sections of 2m (6'6") length with fixing screws and plugs. Comes in anodised aluminum and powder coated yellow. Size: 15mm x 45mm x 2m (9/16" x 1 13 /16" x 6'6")

Connector clips: side-to-side (H: 14mm)

Connector clips: side-to-side (H: 14mm)


For joining sections of matting together side-to-side. Supplied in packs of 10

PVC snap track (H: 14mm)

PVC snap track (H: 14mm)


Two-part snap track that can be welded together to join rolls end-to-end or side-to-side to cover large areas. We recommend one tube of cold welding paste for every 10m of edging. Comes in black and dark grey. Size: 14mm x 2.5m (9/16" x 8'2")

For recessed installations: Gateway 14 XT

H section (H: 10mm)

H section (H: 14 mm)


If the front-to-back dimension of the mat well is greater than the final width of your matting, you may need a H section to secure the different sections together. Supplied in sections of 3m (10') length, with fixing screws and plugs. Comes in black, with mat insert colour specified. Size: 14mm x 13mm (9/16" x 1/2").

R frame (H: 14mm)

R frame (H: 14mm)


You'll need these to secure the matting on the left-to-right edges. Supplied in sections of 3m (10') length with fixing screws and plugs. Comes in anodised aluminum, powder coated dark grey and black. Size: 14mm x 12mm (9/16" x 15/32")

J frame (H: 18mm)

J frame (H: 18mm)


Installing Gateway against a wall? You'll need a J frame to secure the matting on the left-to-right edges. Supplied in sections of 3m (10') length. Comes in dark grey and black. Size: 18mm x 60mm (11/16" x 2 3/8")

T frame (H: 14mm)

T frame (H: 14mm)


You can use a T frame (27mm) to divide the matting into sections left-to-right – this makes it easier to lift and clean. Supplied in sections of 3m (10') length with fixing screws and plugs. Comes in anodised aluminum, powder coated dark grey and black

TL frame (H: 14mm)

TL frame (H: 14mm)


You can use a T/L frame (55mm) to divide the matting into sections left-to-right – this makes it easier to lift and clean. Supplied in sections of 3m (10') length with fixing screws and plugs. Comes in anodised aluminum

L frame (H: 15mm)

L frame (H: 15mm)


Installing around a circular door or non rectangular space? You'll need a L frame to secure the matting. Size: 15mm x 2.7m length (5/8" x 8')

U section (H: 14mm)

U section (H: 14mm)


If the front-to-back dimension of the mat well is greater than the final width of your matting, you may need a U section to secure the different sections together. Supplied in sections of 3m (10') length, with fixing screws and plugs. Comes in anodised aluminum, powder coated dark grey and black. Size: 14mm x 19mm (9/16" x 3/4")

For surface-mounted installations: Gateway 10 XT

PVC edging (H: 10mm, W: 50mm)

PVC edging (H: 10mm, W: 50mm)


Supplied in rolls of 10.1m (33') length. One tube of cold welding paste recommended for every 10m of edging. Comes in black and dark grey. Size: 10mm x 50mm x 10.1m (3/8" x 2" x 33')

Connector clips: side-to-side (H: 10mm)

Connector clips: side-to-side (H: 10mm)


For joining sections of low profile matting together side-to-side. Supplied in packs of 10

PVC snap track (H: 10mm)

PVC snap track (H: 10.5mm)


Two-part snap track that can be welded together to join rolls end-to-end or side-to-side to cover large areas. We recommend one tube of cold welding paste for every 10m of edging. Comes in dark grey. Size: 10.5mm x 2.5m (13/32" x 8'2")

For recessed installations: Gateway 10 XT

R frame (H: 10mm)

R frame (H: 10mm)


You'll need these to secure the matting on the left-to-right edges. Supplied in sections of 3m (10') length with fixing screws and plugs. Comes in anodised aluminum, powder coated dark grey and black. Size: 10mm x 12mm (3/8" x 15/32")

U section (H: 10mm)

U section (H: 10mm)


If the front-to-back dimension of the mat well is greater than the final width of your matting, you may need a U section to secure the different sections together. Supplied in sections of 3m (10') length, with fixing screws and plugs. Comes in anodised aluminum, powder coated dark grey and black. Size: 10mm x 18mm (3/8" x 11/16")

Z frame (H: 10mm)

Z frame (H: 10mm)


Installing matting next to ceramic tiles? You'll need a Z frame to secure the matting. Supplied in sections of 3.6m (12') length with fixing screws and plugs. Comes in anodised aluminum. Size: 10mm x 24mm (3/8" x 15/16")

H section (H: 10mm)

H section (H: 10 mm)


If the front-to-back dimension of the mat well is greater than the final width of your matting, you may need a H section to secure the different sections together. Supplied in sections of 3.6m (12') length, with fixing screws and plugs. Comes in black, with mat insert colour specified. Size: 10mm x 13mm (3/8" x 1/2").

Installation
Cleaning

Keeping Gateway 14 XT looking good is easy

  • Reduces cleaning intervals
  • Simply roll or lift to clean
  • No special tools needed
  • Easy to vacuum or clean with a pressure hose


Watch our step-by-step guide to daily, weekly and monthly cleaning or download the instructions here.


BIM objects

Download our BIM objects in both Revit and IFC file types
