Gateway Brush Wide (Frontrunner Brush Wide) is a hard-wearing bristle brush entrance mat specifically designed to trap stones, snow, ice and shingle.

SELECT A COLOUR:

Heavy-duty brush strips and an extra wide open grid work together to scrape shoes clean and trap and collect any large debris, preventing it from being walked inside.

Seamless integration

Choose from modules with ramped PVC edging, rolls in standard widths and 10m lengths, or order a custom size

Simple installation

One-piece construction means this brush matting can be cut to fit on site, with no previous site visits needed

Easy to maintain

Simply roll or lift to clean, no special tools needed

Download

Gateway Brush Wide works either as a standalone entrance mat, or can be interchanged with another Gateway system, like Gateway Brush or Gateway 14 XT, in the summer months.

Features

Diamond Cut Pattern
Diamond Cut Pattern
Open Grid
Two layer, open-grid construction
Absorbent Inserts
Nylon brush inserts
Comes In Rolls And Modules
Comes in 10m (33') rolls or modules
Made From Flexible PVC
Made from flexible PVC

Benefits

High Soil Removal
Slip resistant, high soil removal
Excellent Drainage
Excellent drainage
Scrapes Shoes Clean
Scrapes shoes clean
Easy Installation
Seamless installation
Easy To Cut To Fit On Site
Easy to cut to fit on site, contours to uneven surfaces
Standard sizes
arrow_left [#335] Created with Sketch.



Gateway Brush Wide

Height

14 - 19mm (9/16" - 3/4")

Standard roll options

10 x 0.6m (33' x 2’)

10 x 0.91m (33' x 3’)

5 x 1.2m (16'6" x 4’)

Standard module options

0.8 x 1.2m (2'7" x 4’)

1 x 1.5m (3'3" x 4’11")

1.1 x 2m (3'7" x 6’7")

Weight

7.8 kg/m2 (1.6 lb/sq.ft)


Surface modules are supplied with factory fitted PVC ramped edging to four sides

Technical info
arrow_left [#335] Created with Sketch.

PVC GRID:


Acoustic

Excellent sound absorption.

Chemical

Resistant to most acids, alkalines and oils. You can read more about specific chemical resistances by downloading this information sheet.

Composition

Flexible Polyvinyl Chloride (PVC)

Environment

We don’t use any substances included in the SVHC list under REACH in any of our matting products.

Fire

Nylon brush fibres: UL94 - V2

Reversion

Thermoplastic shrinkage can result in size reductions up to 2%. This may be accelerated in hot environments. You can read more about the causes of shrinkage by downloading this information sheet.

Thermal

Designed to function at temperatures from -23°C and up to +60°C. Slight size variation may occur at temperature extremes.

UV light

Resistant to PVC degradation.

Warranty

Two years. Visit our policies page for more information about warranties.


NYLON BRUSH INSERTS:

Construction

Aligned tufting

Bristle diameter

0.3mm

Insert thickness

12mm

Bristle content

Nylon 6.6 monofilaments

Bristle height

4.5mm

Backing

PVC

Ancillaries
arrow_left [#335] Created with Sketch.
For surface-mounted installations
PVC edging (H: 14mm, W: 60mm)

PVC edging (H: 14mm, W: 60mm)

Supplied in rolls of 10.1m (33') length. One tube of cold welding paste recommended for every 10m of edging. Comes in black, dark grey, dark brown, holly green, Oxford blue, yellow. Size: 14mm x 60mm x 10.1m (9/16" x 2 1/2" x 33')

PVC edging (H: 14mm, W: 100mm)

PVC edging (H: 14mm, W: 100mm)

Supplied in rolls of 10.1m (33') length. One tube of cold welding paste recommended for every 10m of edging. Comes in black, dark grey and yellow. Size: 14mm x 100mm x 10.1m (9/16" x 3 3/4" x 33')

Aluminium edging (H: 14mm)

Aluminum edging (H: 15mm)

Supplied in sections of 2m (6'6") length with fixing screws and plugs. Comes in anodised aluminum and powder coated yellow. Size: 15mm x 45mm x 2m (9/16" x 1 13 /16" x 6'6")

PVC snap track (H: 14mm)

PVC snap track (H: 14mm)

Two-part snap track that can be welded together to join rolls end-to-end or side-to-side to cover large areas. We recommend one tube of cold welding paste for every 10m of edging. Comes in black and dark grey. Size: 14mm x 2.5m (9/16" x 8'2")

For recessed installations
H section (H: 10mm)

H section (H: 14mm)

If the front-to-back dimension of the mat well is greater than the final width of your matting, you may need a H section to secure the different sections together. Supplied in sections of 3m (10') length, with fixing screws and plugs. Comes in black, with mat insert colour specified. Size: 14mm x 13mm (9/16" x 1/2").

R frame (H: 14mm)

R frame (H: 14mm)

You'll need these to secure the matting on the left-to-right edges. Supplied in sections of 3m (10') length with fixing screws and plugs. Comes in anodised aluminum, powder coated dark grey and black. Size: 14mm x 12mm (9/16" x 15/32")

J frame (H: 18mm)

J frame (H: 18mm)

Installing Gateway against a wall? You'll need a J frame to secure the matting on the left-to-right edges. Supplied in sections of 3m (10') length. Comes in dark grey and black. Size: 18mm x 60mm (11/16" x 2 3/8")

T frame (H: 14mm)

T frame (H: 14mm)

You can use a T frame (27mm) to divide the matting into sections left-to-right – this makes it easier to lift and clean. Supplied in sections of 3m (10') length with fixing screws and plugs. Comes in anodised aluminum, powder coated dark grey and black

TL frame (H: 14mm)

TL frame (H: 14mm)

You can use a T/L frame (55mm) to divide the matting into sections left-to-right – this makes it easier to lift and clean. Supplied in sections of 3m (10') length with fixing screws and plugs. Comes in anodised aluminum

L frame (H: 15mm)

L frame (H: 15mm)

Installing around a circular door or non rectangular space? You'll need a L frame to secure the matting. Size: 15mm x 2.7m length (5/8" x 8')

U section (H: 14mm)

U section (H: 14mm)

If the front-to-back dimension of the mat well is greater than the final width of your matting, you may need a U section to secure the different sections together. Supplied in sections of 3m (10') length, with fixing screws and plugs. Comes in anodised aluminum, powder coated dark grey and black. Size: 14mm x 19mm (9/16" x 3/4")

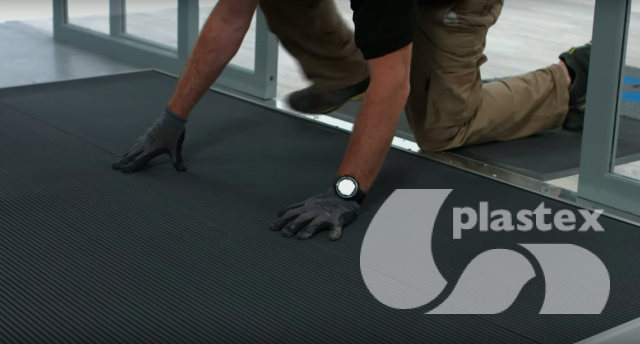

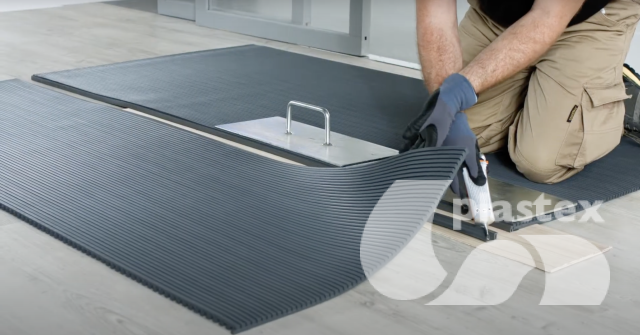

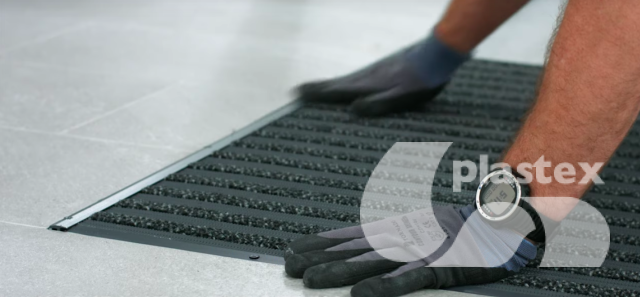

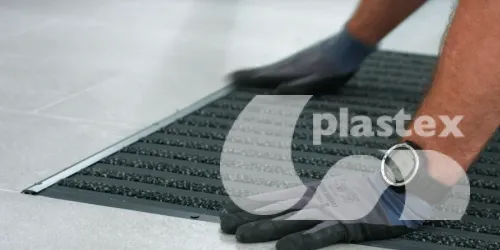

Installation

arrow_left [#335] Created with Sketch.

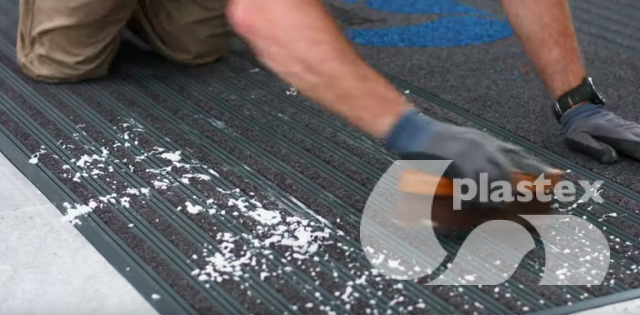

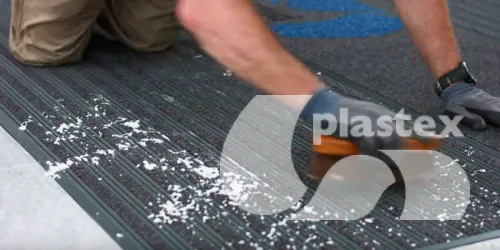

Cleaning

arrow_left [#335] Created with Sketch.

Keeping Gateway Brush Wide looking good is easy

  • Reduces cleaning intervals
  • Simply roll or lift to clean
  • No special tools needed
  • Easy to clean with a high pressure hose


Download the cleaning instructions here.


BIM objects
arrow_left [#335] Created with Sketch.

Download our BIM objects in both Revit and IFC file types
