Plastex Grid

Heavy-duty open-grid tiles that interlock together to create raised work surfaces.

With its open-grid design and easy 'lock-fit' connection, Plastex Grid is ideal for covering large areas in industrial workplaces.

The tiles' heavy-duty open grid can withstand weights up to 10,240 lbs/ft2 and provides excellent drainage, making it the perfect tiling system for industrial workplaces where detergents, industrial chemicals and acids are likely to be spilled. Sitting at a raised height of 1", the tiles easily lock into place, creating an elevated work surface that's flexible yet hard-wearing.

Flexible format

Comes in 1'8" x 1'8" tiles with a raised height of 1"

Simple installation

Tiles easily and securely lock into place

Easy to maintain

Simply lift to clean, no special tools needed

Download

Also available in a tiled format is Plastex Lok, an open-grid mat with a dimpled surface, and Plastex Chex, a closed-grid mat with a checker-plate design.

Features

Elevated Surface
1" raised surface
Open Grid
Open grid
Textured Surface
Textured design
Hard Wearing
Made from rigid polyethylene
Tiles Lock Into Place
Secure 'lock fit' connection

Benefits

Provides Surface Protection
Surface protection; reduces fatigue
Removes Moisture
Removes large quantities of liquids
Slip Resistant
Provides good slip resistance
Withstands Weights Up To 50Tm2
Withstands weights up to 10,240 lbs/ft2
Easy Installation
Easy to install, can be moved around as needed

Standard sizes

arrow_left [#335] Created with Sketch.
Plastex Grid
Height1" (25mm)
Standard tile size1'8" x 1'8" (50 x 50cm)
Weight0.66 lbs/sq.ft (3.6kg/m2)

Technical info

arrow_left [#335] Created with Sketch.
ChemicalResistant to most acids, alkalines and oils. You can read more about specific chemical resistances by downloading this information sheet.
CompositionMade from linear low density polyethylene (LLDPE)
HygieneMade from non-porous 100% LLDPE (linear low-density polyethylene), which inhibits the growth of bacteria.
ThermalDesigned to function at temperatures from -7°F and up to -140°F. Slight size variation may occur at temperature extremes.
WarrantyTwo years. Visit our policies page for more information about warranties.

Ancillaries

arrow_left [#335] Created with Sketch.
Aluminum edging (H: 1")

Aluminum edging (H: 1")

Supplied in sections of 6'6" (2m) length with fixing screws and plugs. Comes in anodized aluminum. Size: 1" x 2 3/4" x 6'6" (25mm x 66mm x 2m)

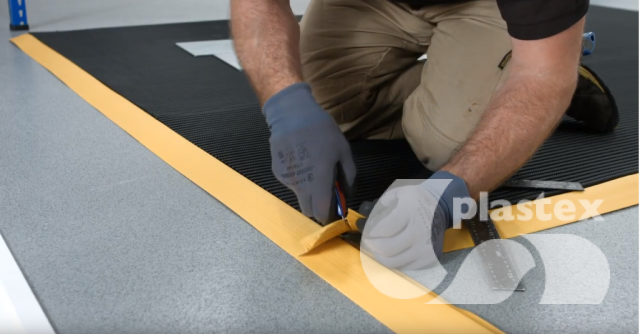

Installation

arrow_left [#335] Created with Sketch.

Plastex Grid's 'lock fit' connection means installation is simple

  • The tiles easily and securely lock into place
  • Creates a raised 1" work surface
  • Effectively covers large areas
  • No special tools or previous site visits needed for installation

Download a step-by-step installation guide below:

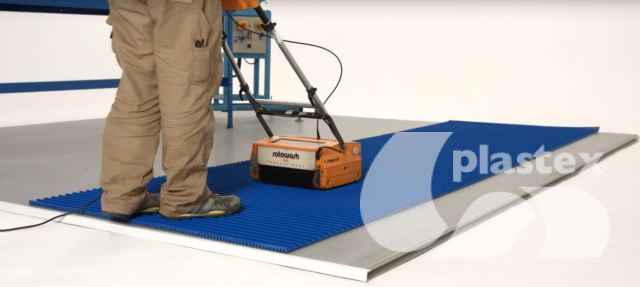

Cleaning

arrow_left [#335] Created with Sketch.

Keeping Plastex Grid looking good is easy

  • Light to handle
  • Simply lift to clean
  • Easy to clean with a high pressure hose
