Flexigrid


Heavy-tread matting with an aggressive surface for industrial environments.

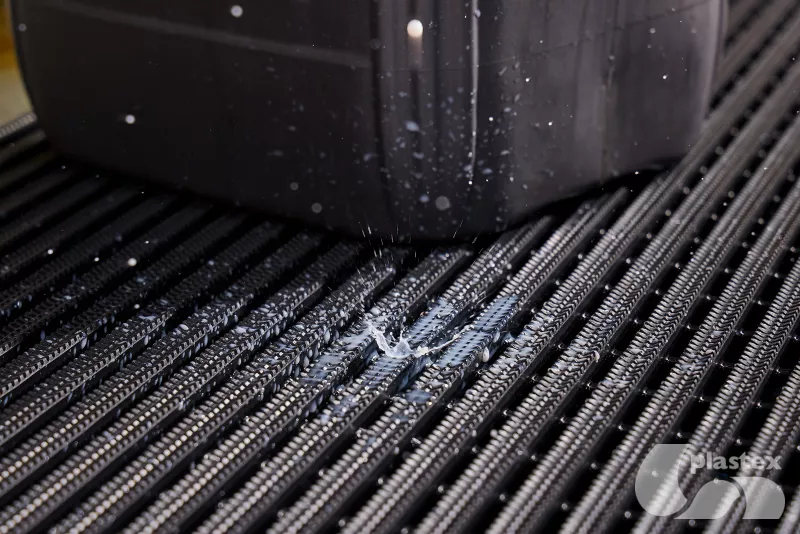

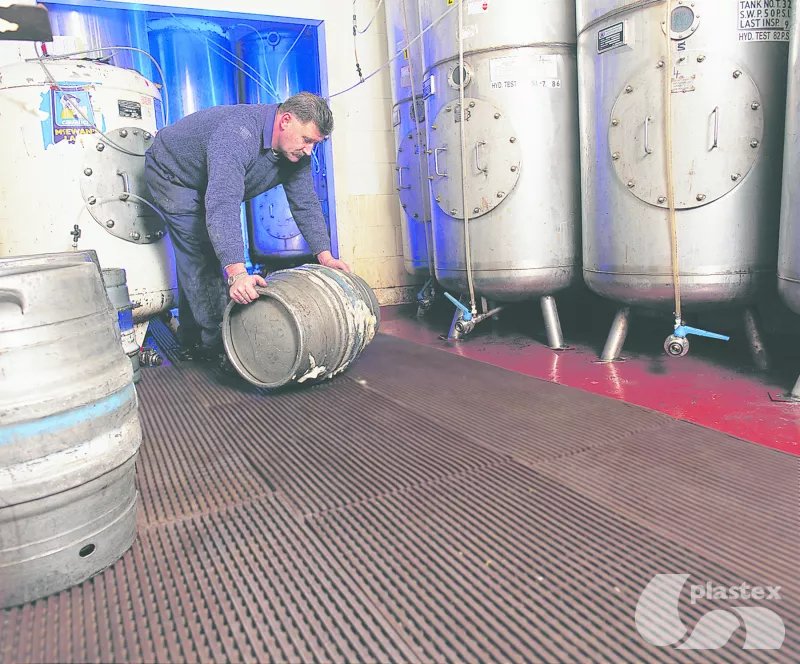

An extra-aggressive, heavy-duty industrial mat capable of withstanding even the toughest workplaces, Flexigrid is specifically designed for workplaces where spillages, debris and metal shards are an issue.

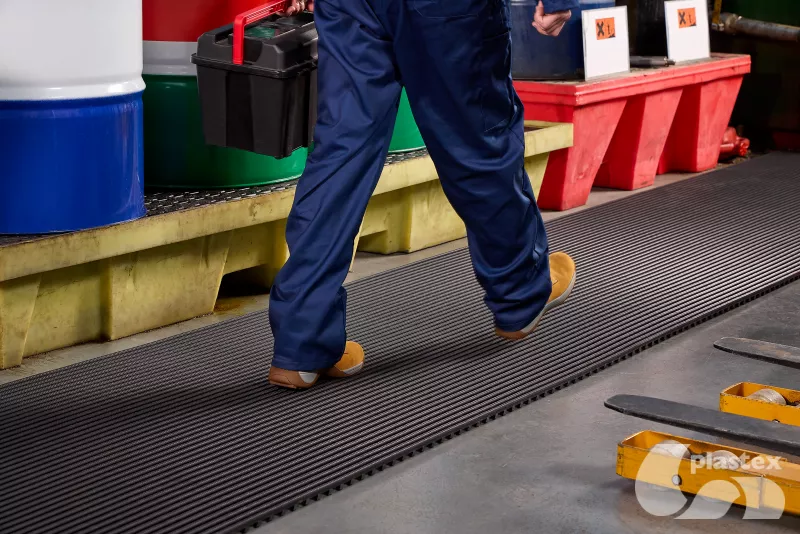

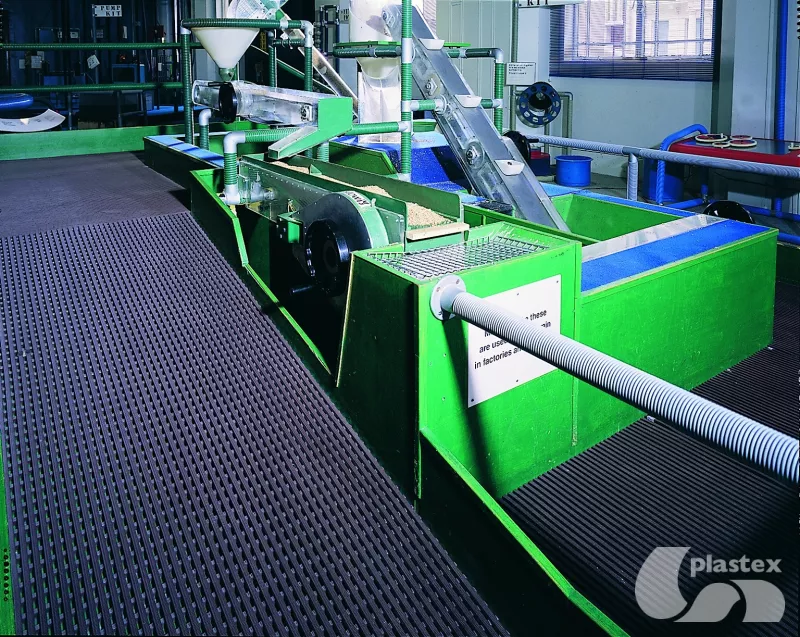

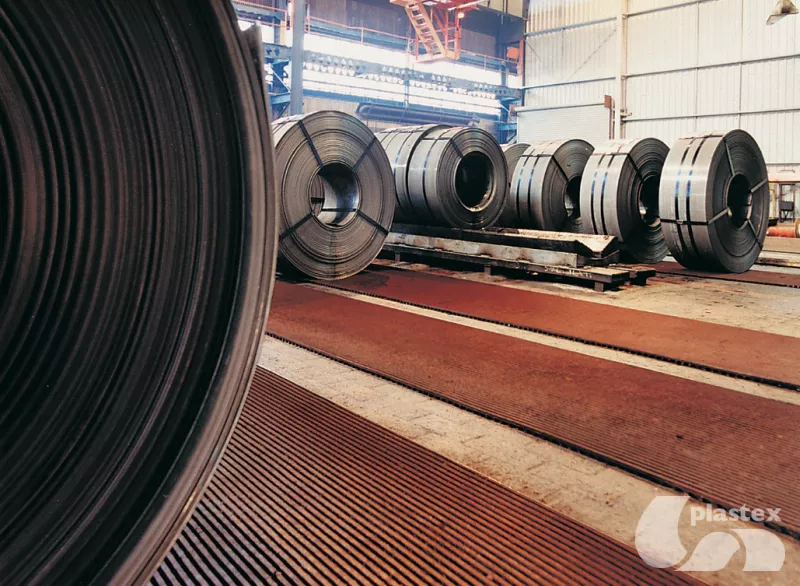

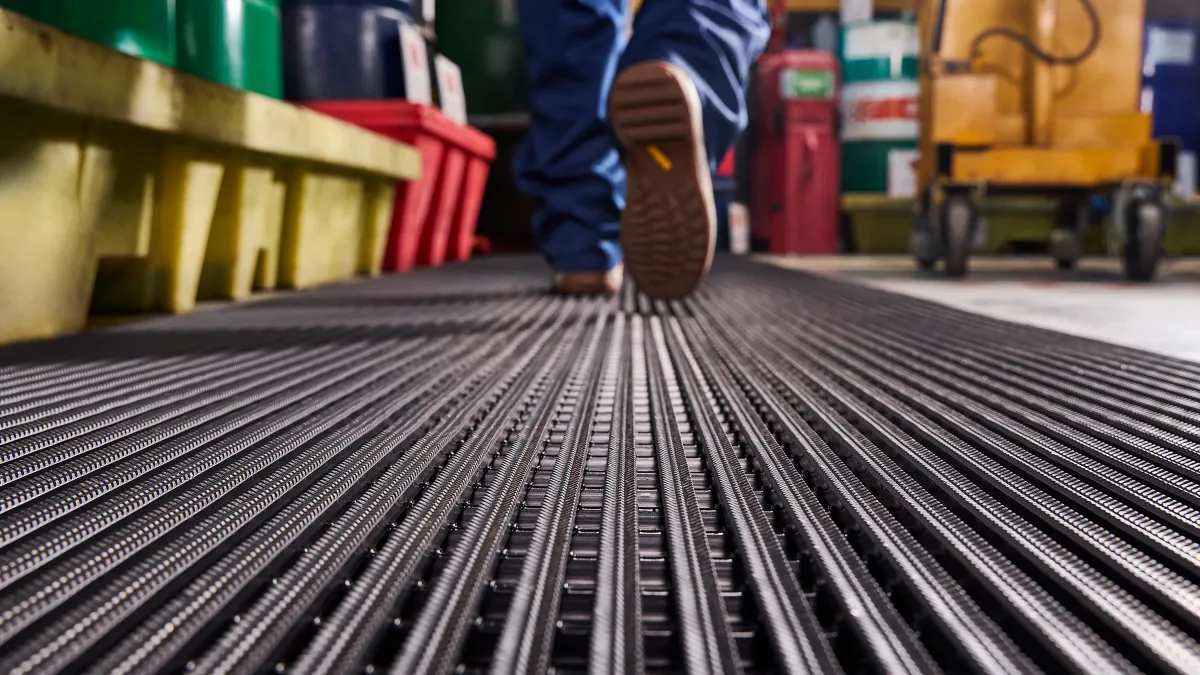

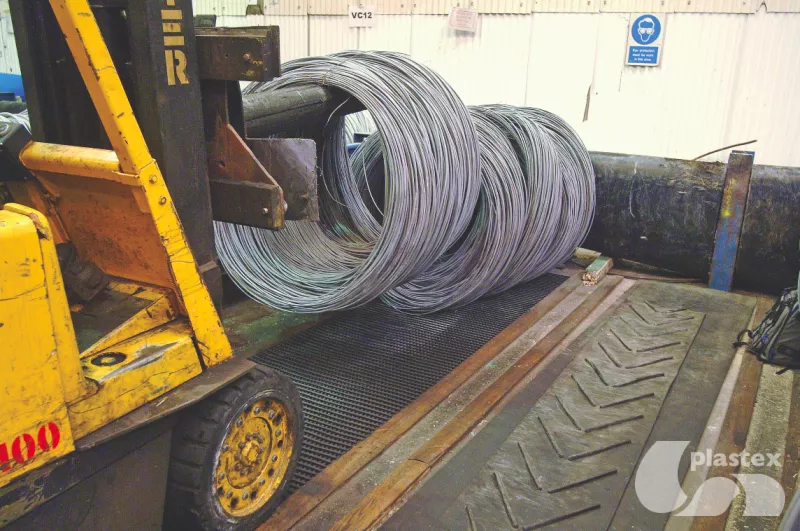

This heavy-tread matting provides the highest slip resistance, while the elevated height means any hazardous matter is quickly dispersed and drained. This makes it an ideal workshop walkway mat, factory floor mat or warehouse walk-off mat.

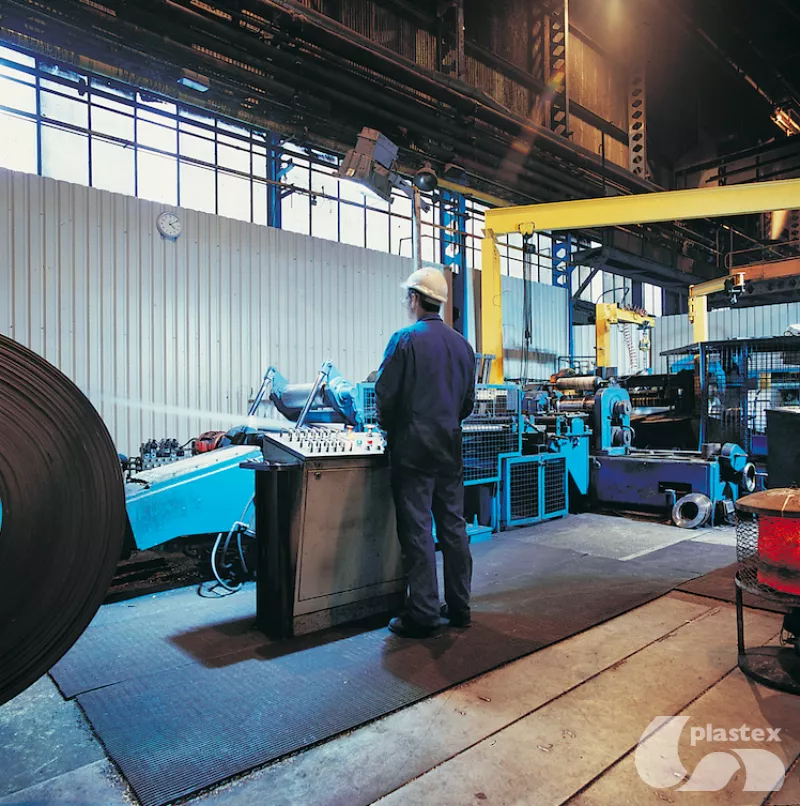

This heavy-duty industrial mat is also perfect for workplaces with standing employees: the two-layer construction provides comfortable cushioning to help reduce fatigue and boost productivity.

Flexible formats

Choose from 5m (16'6") and 10m (33") rolls or ramped modules

Quick installation

Simply roll out this PVC matting and cut to fit on site. Contours to uneven surfaces

Simple to maintain

Easy to clean with a high pressure hose

Features + benefits

Features

Diamond Cut Pattern

Diamond-tread surface

Two Layer Construction

Two-layer construction

Anti Fatigue

Proven anti-fatigue properties

Made From Flexible PVC

Made from flexible PVC

Comes In Rolls And Modules

Comes in 5m (16'6") and 10m (33") rolls or ramped modules

Benefits

Slip Resistant

Certified slip resistant (DIN 51130: R11, ASTM 1677: 0.6/0.5)

Excellent Drainage

Excellent drainage (DIN 51130: V10)

Boosts Productivity

Boosts productivity

Easy To Cut To Fit On Site

Cut to fit on site, contours to uneven surfaces

Easy Installation

Quick to install, easy to clean

Standard sizes
Flexigrid
Height20mm (3/4")
Standard roll options5 x 0.6m (16'6" x 2’)
5 x 0.91m (16'6" x 3’)
10 x 0.6m (33' x 2’)
10 x 0.91m (33' x 3’)
Standard module options1.8 x 0.6m (6' x 2')
1.8 x 0.91m (6' x 3')
Weight9.8kg/m2 (2lb/sq.ft)


Surface modules are supplied with factory fitted PVC ramped edging to four sides

Technical info
AcousticExcellent sound absorption.
ChemicalResistant to most acids, alkalines and oils. You can read more about specific chemical resistances by downloading this information sheet.
CompositionMade from flexible Polyvinyl Chloride (PVC).
EnvironmentFlexigrid is 100% recyclable. When manufactured in black, it's made using our post industrial recycled material. The recycled content averages at least 30%, but we strive for 100% wherever possible. We don’t use any substances included in the SVHC list under REACH in any of our matting products.
FireDIN 4102 Part 1- Classification B2
HygieneMade from non-porous PVC that’s naturally resistant to bacteria growth.
ReversionThermoplastic shrinkage can result in size reductions up to 2%. This may be accelerated in hot environments. You can read more about the causes of shrinkage by downloading thisinformation sheet.
Slip resistance

DIN 51130: R11, V10
ASTM E303 Dry/Wet with lines along–lines across 80-102 / 66-90

ThermalDesigned to function at temperatures from -23°C and up to +60°C. Slight size variation may occur at temperature extremes.
UV lightResistant to PVC degradation.
WarrantyFour years. Visit our policies page for more information about warranties.
Ancillaries

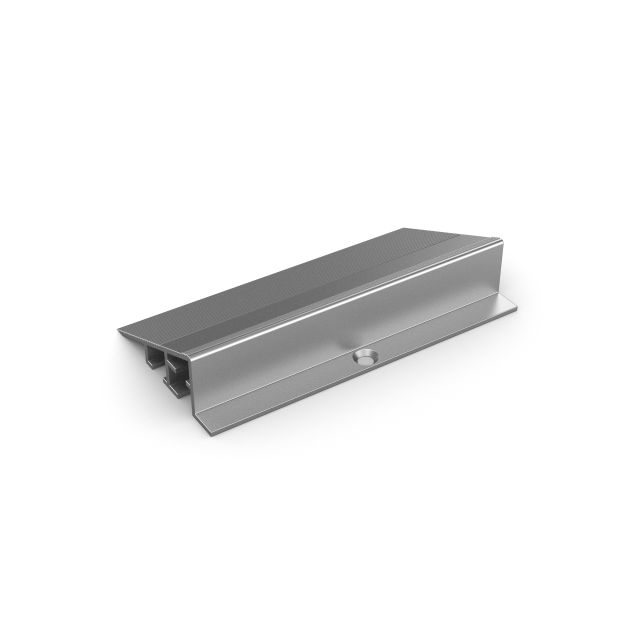

Aluminium edging (H: 20mm)

Aluminium edging (H: 20mm)


Supplied in sections of 2m (6'6") length with fixing screws and plugs. Comes in anodised aluminium. Size: 20mm x 50mm x 2m (7/8” x 2 3/16” x 6’6”)

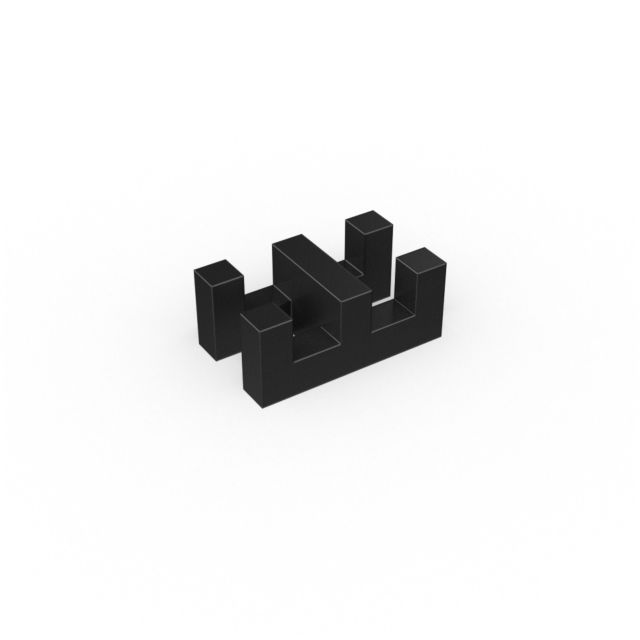

Ancillaries Connector Clips Dual Purpose (H: 25mm)

Connector clips: dual purpose (H: 25mm)


For joining sections of matting together side-to-side or end-to-end. Supplied in packs of 10.

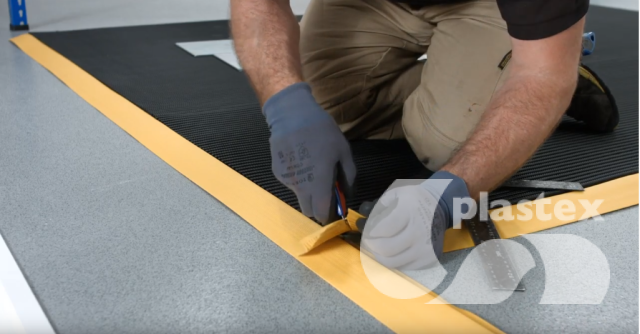

Installation

Flexigrid's one-piece construction means installation is simple

  • Comes in 5m and 10m rolls, or choose ramped modules
  • Easy to cut to fit on site
  • Contours to uneven surfaces

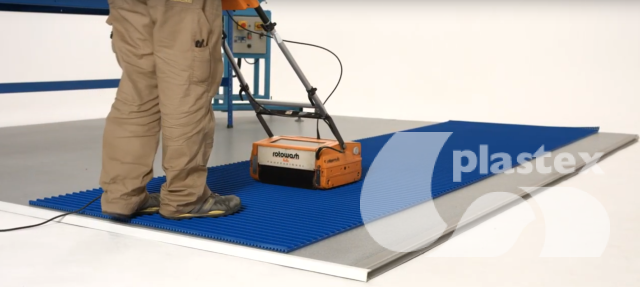

Cleaning

Keeping Flexigrid looking good is easy

  • Light to handle
  • Roll or lift to clean
  • Easy to clean with a high pressure hose
