Frontrunner SB+


Solid-backed entrance matting with heavy-duty carpet inserts for maximum moisture absorption.

Download Data Sheet

Designed for internal areas, Frontrunner SB+ is solid-backed, ribbed carpet entrance matting that doesn't need a recessed well for installation.

The mat’s etched pattern scrapes shoes clean while the carpet inserts absorb moisture, reducing the amount of dirt and liquid that’s walked into the building. Slip resistant, heel-proof and wheel-proof with excellent rolling resistance, Frontrunner SB+ is the perfect solid-backed entrance matting for busy workplaces, retail buildings and shopping centres.

Installation is simple. You can adhere directly to the floor to create a surface-mounted walk-off mat, or place this loose lay matting directly over your existing floor to create a slip-resistant walkway.

Seamless integration

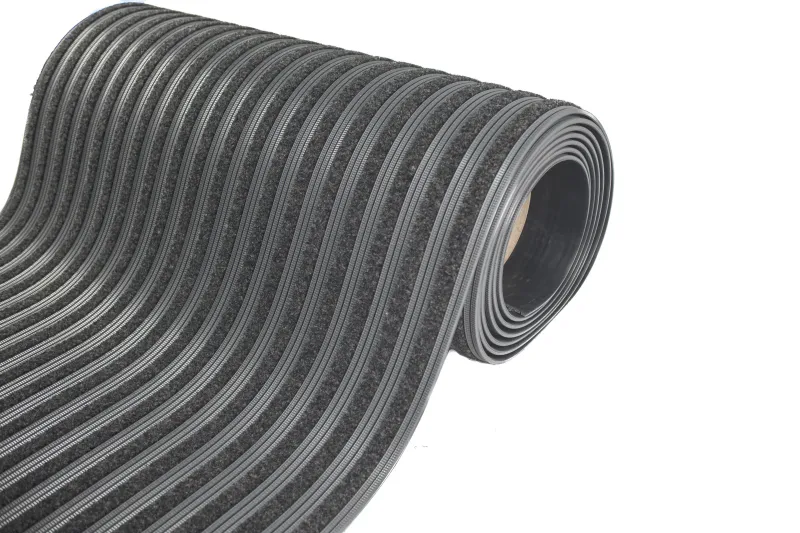

Comes in 10m (33") rolls or order a custom size

Simple installation

Simply roll out and cut to fit on site; contours to uneven surfaces

Easy to maintain

Light to handle; no special cleaning tools needed

Features + benefits

Features

Textured Surface

Etched pattern

One Layer Construction

One layer hollow construction

Ribbed Surface

Ribbed vinyl pattern with solid backing

Elevated Surface

6.5mm grid height

Close Mesh Grid

Close mesh grid

Benefits

Slip Resistant

Certified slip resistant (DIN 51130: R11, ASTM C1028: 0.6/0.6)

Lightweight

Light to handle

Easy Installation

Easy to install, no need for recessed mat well

Loose Lay

Loose lay or adhere to subfloor

Wheel And Heel Proof

Wheel proof and heel proof

Standard sizes
Frontrunner SB+
Height6.5/8mm (1/4"-5/16")
Standard roll option10 x 1m (33' x 3'3’)
Standard module option1 x 1.5m (3'3" x 4'11")
Weight6.3 kg/m2 (1.3lb/sq.ft)


Surface modules are supplied with factory fitted PVC ramped edging to four sides

Technical info
PVC BACKING
Acoustic Excellent sound absorption.
Chemical Resistant to most acids, alkalines and oils. You can read more about specific chemical resistances by downloading this information sheet.
Composition Flexible Polyvinyl Chloride (PVC)
Environment We don’t use any substances included in the SVHC list under REACH in any of our matting products.
Fire EN ISO 13501-1:2007-Cfl-S1, ASTM E648, Class 2
Reversion Thermoplastic shrinkage can result in size reductions up to 2%. This may be accelerated in hot environments. You can read more about the causes of shrinkage by downloading this information sheet.
Rolling resistance ASTM F 2753: 0.080 in loss of thickness after 1,000 cycles at 500lbs.
Slip resistance

ASTM E303 Dry/Wet with lines along–lines across 74-95 / 61-74
DIN 51130: R11, V10

Thermal Designed to function at temperatures from -23°C and up to +60°C. Slight size variation may occur at temperature extremes.
UV light Resistant to PVC degradation
Warranty Three years. Visit our policies page for more information about warranties.


ABSORBENT INSERTS (ZENO 600 SERIES):
Wear classification EN 1307 - 33, Commercial heavy
Pile material ECONYL® , 100% regenerated polyamide BCF tuft base
Tuft base100% regenerated non woven polyester Colback™
Phthalate Free backingWaterproof Comfort™ vinyl
Total height

EN 1765 ± 8.7 mm

Pile heightEN 1766 ± 6.7 mm
Total weightEN 8543 ± 4260 g/m²
Pile yarn weight± 820 g/m²
Pile density

± 0,127 g/cm³

FireEN ISO 13501-1:2007 Cfl-S1
Suitable for castor chairsEN 985 A, intensive use r=2.8
Colours10
Ancillaries
PVC edging (SB / SB+)

PVC edging (SB / SB+)


Supplied in rolls of 60m (197") length. One tube of cold welding paste recommended for every 10m of edging. Comes in black and dark grey. Size: 6.5mm x 30mm x 60m (1/4" x 1" x 197')

PVC joining strip (SB / SB+)

PVC joining strip (SB / SB+)


Can be welded to join rolls end-to-end or side-to-side when doing large installations. Comes in black and grey. Size: 3.5mm x 3.6m (1/8" x 11'9")

Installation

Frontrunner SB+'s one-piece construction means installation is simple

There are two ways to install SB: you can adhere directly to the floor, or loose lay modules with PVC edging. For large installations with medium to high traffic, we recommend adhering your mat using F Ball’s Styccobond F73 PLUS, which is a single-part, heavy-duty adhesive that provides high bond strength.

Watch the videos below for step-by-step installation guides, or download the recessed entrance matting installation instructions and the surface-mounted installation instructions.

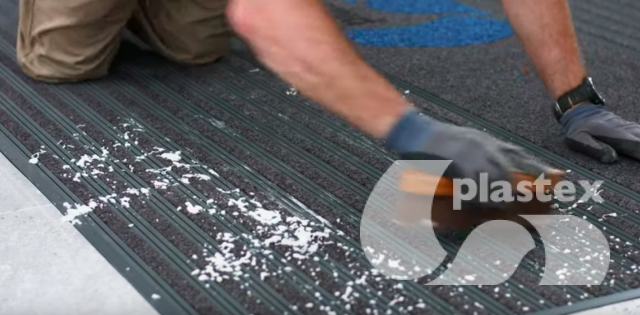

Cleaning
BIM objects

Download our BIM objects in both Revit and IFC file types
