HVD

Cushioned animal cage matting that's hygienic, comfortable and easy to clean.

Create a warm and inviting environment for animals to lie and stand on with HVD, cushioned matting that provides both cleanliness and comfort.

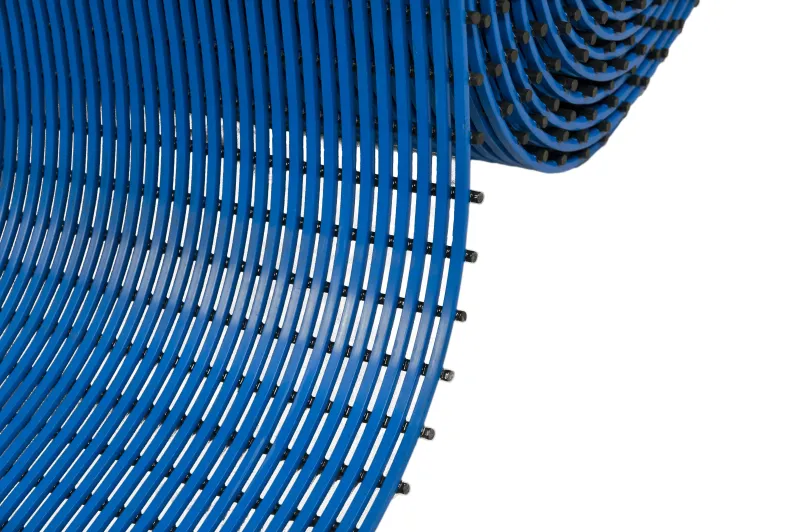

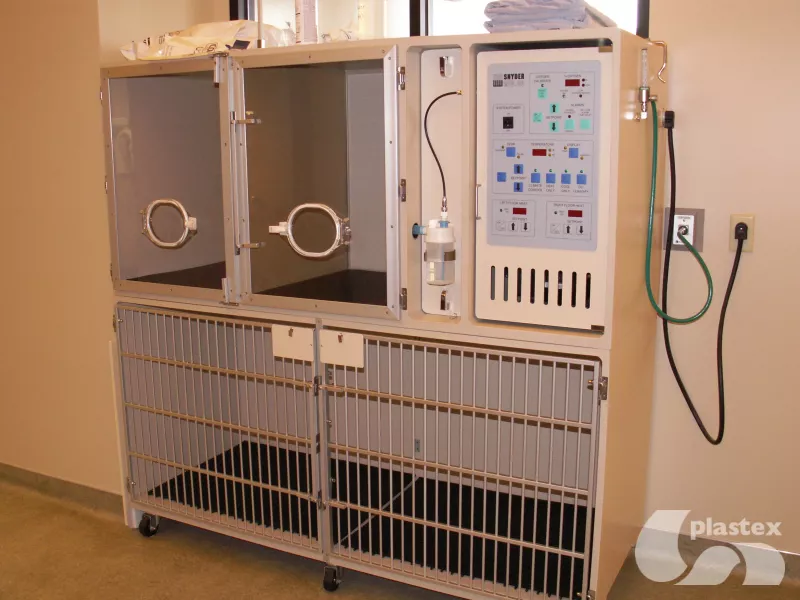

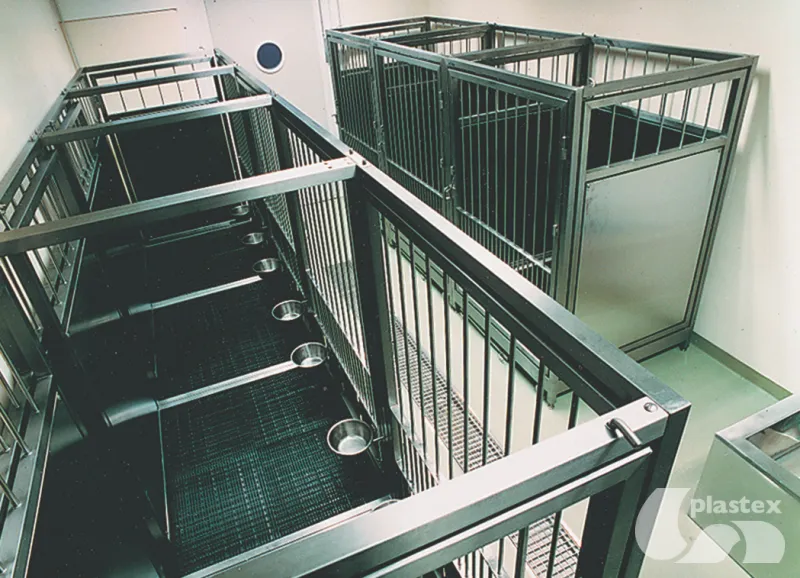

Made from non-toxic, flexible PVC with a smooth upper surface, it ensures a comfortable and hygienic environment for all types of animals. The two-layer construction elevates the animal off the surface and the open grid provides a high level of drainage, making it ideal for veterinary clinics, kennels, research facilities and zoos.

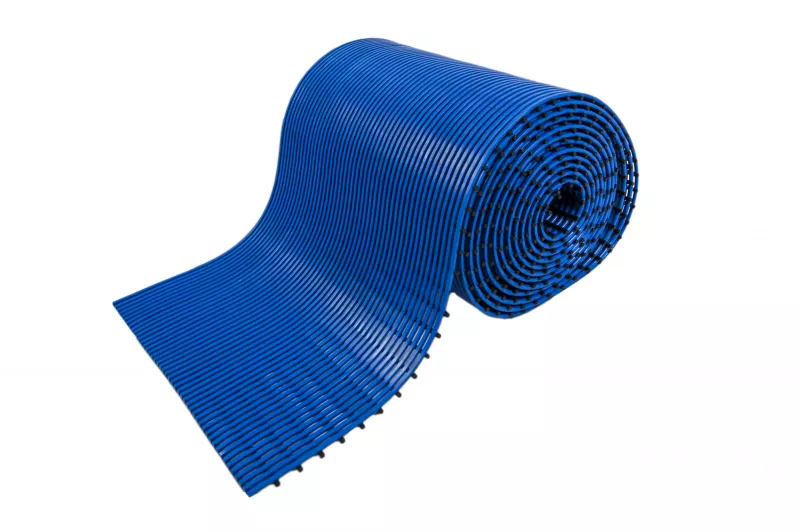

  • Flexible format Supplied in 10m rolls
  • Simple installation Simply fit and cut on site
  • Easy to maintain Lift or roll to clean, no special tools needed
FeaturesBenefits
Features And Benefits Smooth Surface 35
Extra smooth surface
Features And Benefits Environmentally Friendly 26
Creates a comfortable environment
Features And Benefits Two Layer Construction 38
Two-layer construction
Features And Benefits Excellent Drainage 04
High level of drainage
Features And Benefits Made From Non Porous Pvc 07
Made from non-toxic, inert PVC
Features And Benefits Easy To Clean 31
Hygenic and easy to clean
Features And Benefits Made From Flexible Tpo 08
Flexible construction
Features And Benefits Easy To Cut To Fit On Site 10
Easy to cut to fit on site
Features And Benefits Comes In Rolls 12
Supplied in 10m rolls
Features And Benefits Easy Installation 09
Quick to install
Black
Blue
HVD
Height 13.5mm (17/32")
Standard roll options 10 x 0.6m (33' x 2')
10 x 0.91m (33' x 3')
10 x 1.22m (33' x 4')
Weight 6.9kg/m2 (1.4lb/sq.ft)
Acoustic Excellent sound absorption properties
Chemical Resistant to most acids, alkalines and oils. You can read more about specific chemical resistances by downloading this information sheet.
Composition Flexible DINP plasticised Polyvinyl Chloride (PVC)
Environment HVD is 100% recyclable. We don’t use any substances included in the SVHC list under REACH in any of our matting products.
Hygiene Made from non-porous PVC that’s naturally resistant to bacteria growth.
Reversion Thermoplastic shrinkage can result in size reductions up to 2%. This may be accelerated in hot environments. You can read more about the causes of shrinkage by downloading this information sheet.
Thermal Designed to function at temperatures from -23°C and up to +60°C. Slight size variation may occur at temperature extremes.
UV light Resistant to PVC degradation
Warranty Two years. Visit our policies page for more information about warranties.

60mm PVC edging strip

Supplied in rolls of 10.1m (33') length with cold welding paste. Comes in black, dark grey, dark brown, holly green, Oxford blue, yellow. Size: 14mm x 60mm x 10.1m (9/16" x 2 1/2" x 33')

100mm PVC edging strip

Supplied in rolls of 10.1m (33') length with cold welding paste. Comes in black, dark grey and yellow. Size: 14mm x 100mm x 10.1m (9/16" x 3 3/4" x 33')

45mm aluminium edging strip

Supplied in sections of 2m (6'6") length with fixing screws and plugs. Comes in anodised aluminium, powder coated yellow. Size: 15mm x 45mm x 2m (5/8" x 1 13/16" x 6'6")

Connector clips: dual purpose

For joining sections of matting together side-to-side or end-to-end. Supplied in packs of 10

Snap track

Two-part snap track that can be welded together to join rolls end-to-end or side-to-side to cover large areas. Comes in black and dark grey. Size: 14mm x 2.5m (9/16" x 8'2")

Small floor hook

For securing sections of the matting to the floor. Supplied in packs of 10 with screws and plugs

Large floor hook

For securing sections of the matting to the floor. Supplied in packs of 10 with screws and plugs

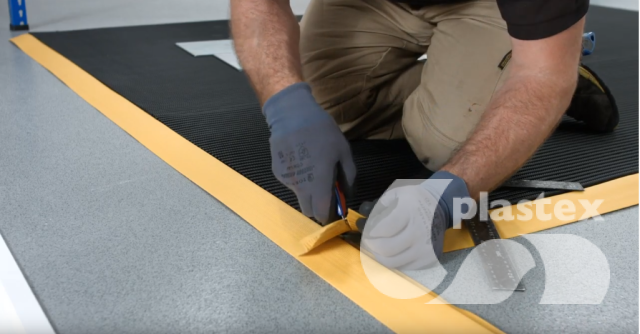

HVD's one-piece construction means installation is simple

  • Supplied in 10m rolls
  • Easy to cut to fit on site
  • Contours to uneven surfaces

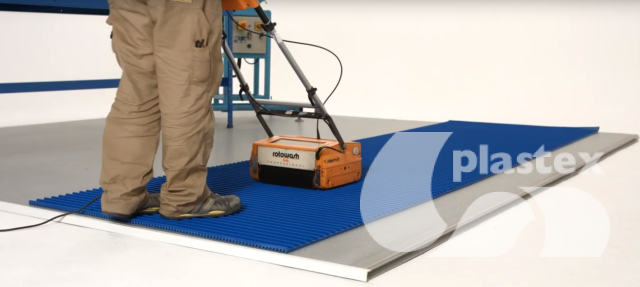

Keeping HVD looking good is easy

  • Light to handle
  • Simply lift or roll to clean
  • No special cleaning tools needed
