Trackgrip

Wide-grid walkway matting specifically designed for greasy or grimy environments.

With its two-layer construction, extra-wide grid and excellent drainage, Trackgrip is the perfect defence against grease, grime and oil.

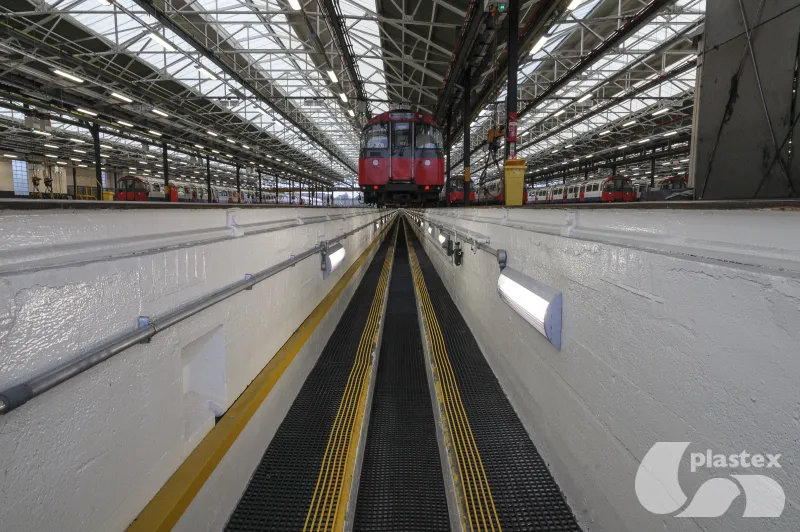

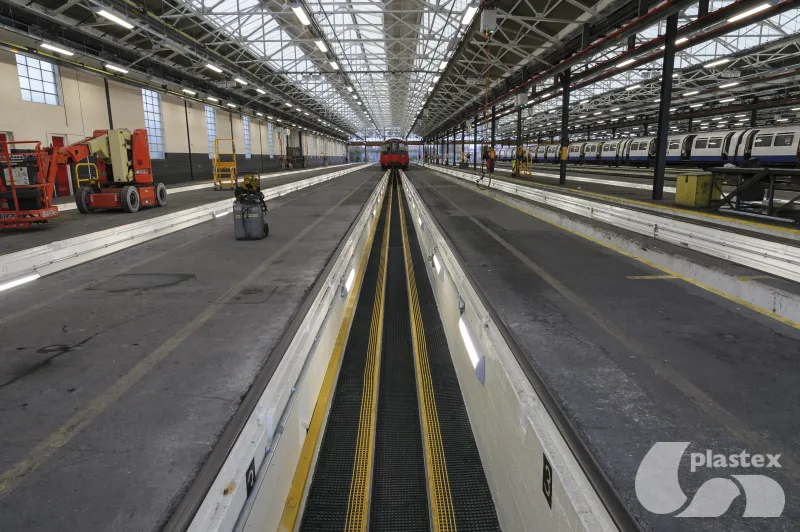

Made from non-porous PVC with a two-layer construction, Trackgrid is impermeable to fluids and provides excellent drainage, making it ideal for environments where spillages are likely. Its diamond cut pattern provides the highest slip resistance, and the wide grid means it's perfect for environments where oils and greasy materials are present, like railway maintenance areas, construction sites and processing plants.

  • Flexible format Comes in 10m (33") rolls
  • Quick installation Roll out and cut to fit on site; contours to uneven surfaces
  • Simple to maintain Easy to clean with a high pressure hose

Need to highlight a route or mark out an area? This product also comes as Trackgrip Plus, which features a yellow band that runs along the edging of the mat for delineating routes or areas.

FeaturesBenefits
Diamond cut pattern
Certified slip resistant (DIN 51130: R11 ASTM 1677: 0.9/0.7)
Two-layer construction and extra-wide spacing
Excellent drainage (DIN 51130: V10)
Made from non-porous PVC
Resistant to chemicals, acids, oils
Comes in 10m (33') rolls
Quick to install
Made from flexible PVC
Easy to clean with a high pressure hose
Black
Black with yellow edging
Trackgrip Trackgrip Plus
Height 15mm (5/8") 15mm (5/8")
Standard roll options 10 x 0.6m (33' x 2’) 10 x 0.6m (33' x 2’)
10 x 0.91m (33' x 3’) 10 x 0.91m (33' x 3’)
10 x 1.22m (3'3" x 4') 10 x 1.22m (3'3" x 4')
Weight 4.6kg/m2 (0.94lb/sq.ft) 4.6kg/m2 (0.94lb/sq.ft)
Acoustic Excellent sound absorption.
Chemical Resistant to most acids, alkalines and oils. You can read more about specific chemical resistances by downloading this information sheet.
Composition Flexible Polyvinyl Chloride (PVC).
Environment Trackgrip is 100% recyclable. When manufactured in black, it’s made using our post industrial recycled material. The recycled content averages at least 30%, but we strive for 100% wherever possible. We don’t use any substances included in the SVHC list under REACH in any of our matting products.
Hygiene Made from non-porous PVC that’s naturally resistant to bacteria growth.
Reversion Thermoplastic shrinkage can result in size reductions up to 2%. This may be accelerated in hot environments. You can read more about the causes of shrinkage by downloading this information sheet.
Slip resistance ASTM F 1677 - Dry/Wet: 0.9/0.7
DIN 51130: R11, V10
Thermal Designed to function at temperatures from -23°C and up to +60C. Slight size variation may occur at temperature extremes.
UV light Resistant to PVC degradation.
Warranty Three years. Visit our policies page for more information about warranties.

60mm PVC edging strip

Supplied in rolls of 10.1m (33') length with cold welding paste. Comes in black, dark grey, dark brown, holly green, Oxford blue, yellow. Size: 14mm x 60mm x 10.1m (9/16" x 2 1/2" x 33')

100mm PVC edging strip

Supplied in rolls of 10.1m (33') length with cold welding paste. Comes in black, dark grey and yellow. Size: 14mm x 100mm x 10.1m (9/16" x 3 3/4" x 33')

45mm aluminium edging strip

Supplied in sections of 2m (6'6") length with fixing screws and plugs. Comes in anodised aluminium, powder coated yellow. Size: 15mm x 45mm x 2m (5/8" x 1 13/16" x 6'6")

Small floor hook

For securing sections of the matting to the floor. Supplied in packs of 20 with screws and plugs

Connector clips: dual purpose

For joining sections of matting together side-to-side or end-to-end. Supplied in packs of 10

Trackgrip's one-piece construction means installation is simple

  • Comes in 10m rolls, ideal for covering large areas
  • Quick and easy to cut to fit on site
  • No special tools needed
  • Contours to uneven surfaces

Keeping Trackgrip looking good is easy

  • Easy to handle
  • Roll or lift to clean
  • Simply clean with a high pressure hose

Also suitable for high traffic walkways:
