Flexi Tred Xtra
Extra thick heavy-duty switchboard matting with a textured surface that insulates from electrical shock.
Introducing our latest electrical insulation matting: Flexi Tred Xtra, now with enhanced safety and durability.

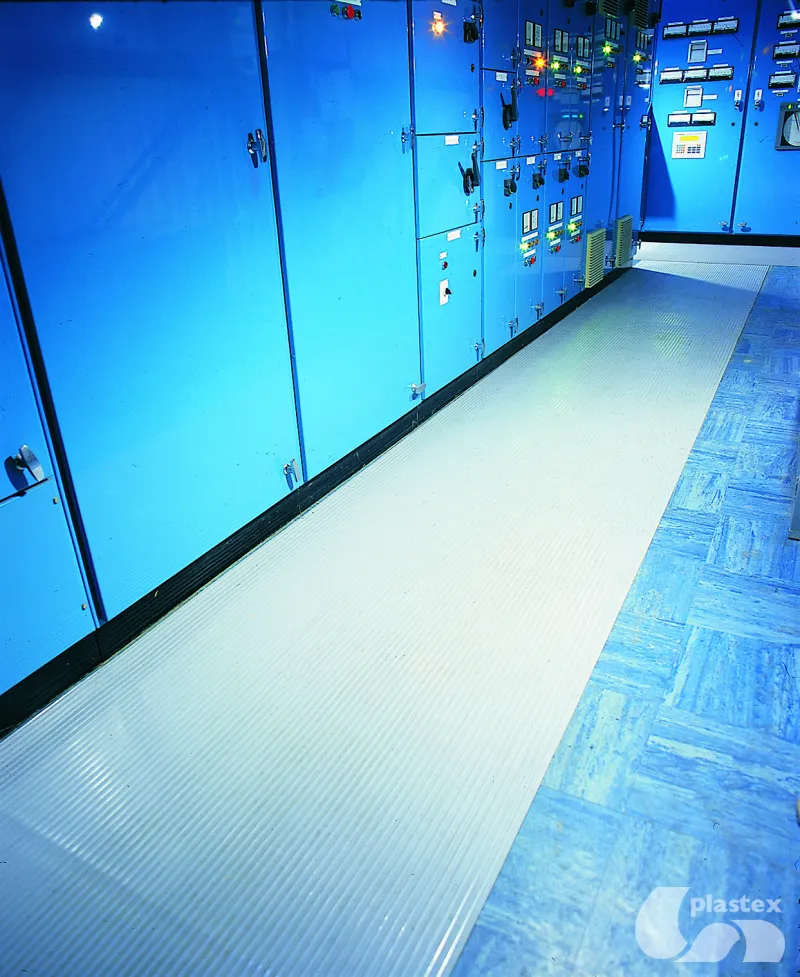

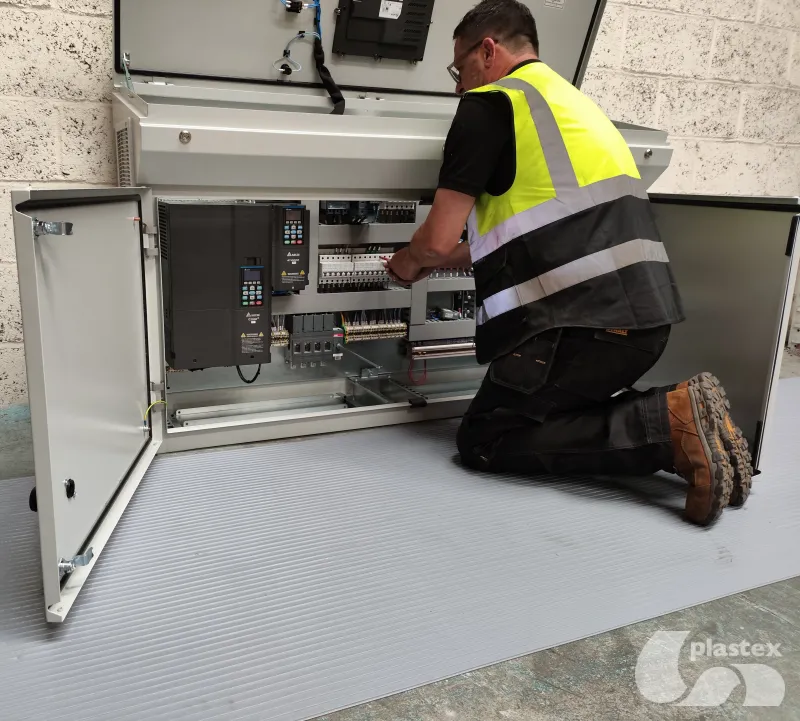

With a 4.6mm thickness and tested to ASTM D178 Class 1 standards, this matting is ideal for areas where electrical shock risk and comfort are key – including around switchboards and electrical panels. To meet safety requirements, the reverse is continuously marked with the ASTM standard and results. It offers a 27kV breakdown voltage, delivering strong insulation and resistance to electrical interference.

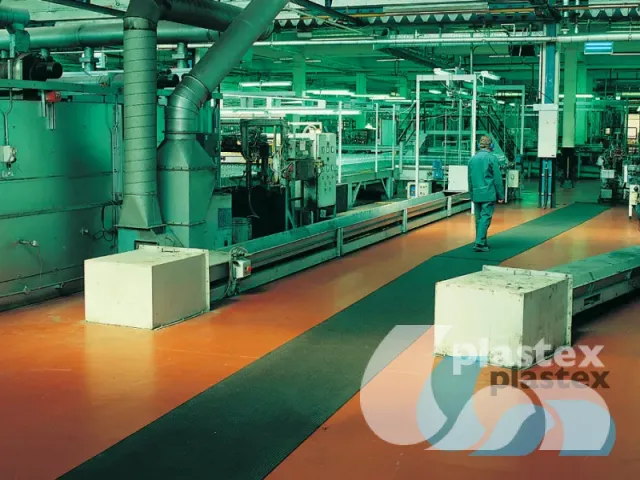

The durable ribbed surface provides slip resistance, is easy to clean, and stands up to wear. Naturally resistant to acids, oils, and chemicals, Flexi Tred Xtra is a reliable choice for manufacturing, production, and busy commercial environments.
Flexible format
Supplied in a convenient roll format
Simple installation
Easy to cut to fit on site, contours to the subfloor
Easy to maintain
Simply lift or roll to clean, no special tools needed
Features
Textured, broad-rib surface
Breakdown voltage of 27kV
Hard-wearing vinyl sheets
Made from flexible PVC
Supplied in a convenient roll format
Benefits
Good slip and wear resistance
Insulates from electrical shock
Resistant to chemicals, acids and oils
Easy to cut to fit on site; contours to the subfloor
Quick to install
| Flexi Tred | |
| Height | 4.6 mm (3/16”) |
| Standard roll option | 10 x 1m (33' x 3'3") |
| Weight | 5.5kg/m2 (1.26lb/sq.ft) |
| Chemical | Resistant to most acids, alkalines and oils. You can read more about specific chemical resistances by downloading this information sheet. |
| Composition | Flexible Polyvinyl Chloride (PVC) |
| Environment | Flexi Tred Xtra is 100% recyclable. We don’t use any substances included in the SVHC list under REACH in any of our matting products. |
| Electrical | ASTM D178 Class 1 (7,500V working voltage) BS 2782: Part 2 Method 230A Insulation resistance > 2000M Ω Electric strength = 20,000 volts DIN 60243-1 (VDE 0303 part 21): 1999-03 Breakdown voltage: 27.050 kV eff |
| Fire | UL 94. Horizontal burning test. Classification 94HB |
| Reversion | Thermoplastic shrinkage can result in size reductions up to 2%. This may be accelerated in hot environments. You can read more about the causes of shrinkage by downloading this information sheet. |
| Thermal | Designed to function at temperatures from -23°C and up to +60°C. Slight size variation may occur at temperature extremes. |
| UV light | Resistant to PVC degradation |
| Warranty | Two years. Visit our policies page for more information about warranties. |
Flexi Tred's one-piece construction means installation is simple
- Supplied in convenient roll format
- Easy to cut to size and shape
- Contours to the subfloor
We recommend adhering your mat to the subfloor using an adhesive suitable for heavy-duty or wet areas. Suitable options include F Ball’s Styccobond F73 PLUS, a single-pack, heavy-duty flooring adhesive designed for installing a wide range of floorcoverings; Styccobond F81, a solvent-free, two-part epoxy adhesive specifically formulated for use in areas exposed to surface water; or Styccobond F84, a two-part reactive epoxy adhesive ideal for securing a variety of sheet floorcoverings.
Keeping Flexi Tred Xtra looking good is easy
- Easy to clean with a vacuum or mop
- No special cleaning tools needed
Features
Textured, broad-rib surface
Breakdown voltage of 27kV
Hard-wearing vinyl sheets
Made from flexible PVC
Supplied in a convenient roll format
Benefits
Good slip and wear resistance
Insulates from electrical shock
Resistant to chemicals, acids and oils
Easy to cut to fit on site; contours to the subfloor
Quick to install
| Flexi Tred | |
| Height | 4.6 mm (3/16”) |
| Standard roll option | 10 x 1m (33' x 3'3") |
| Weight | 5.5kg/m2 (1.26lb/sq.ft) |
| Chemical | Resistant to most acids, alkalines and oils. You can read more about specific chemical resistances by downloading this information sheet. |
| Composition | Flexible Polyvinyl Chloride (PVC) |
| Environment | Flexi Tred Xtra is 100% recyclable. We don’t use any substances included in the SVHC list under REACH in any of our matting products. |
| Electrical | ASTM D178 Class 1 (7,500V working voltage) BS 2782: Part 2 Method 230A Insulation resistance > 2000M Ω Electric strength = 20,000 volts DIN 60243-1 (VDE 0303 part 21): 1999-03 Breakdown voltage: 27.050 kV eff |
| Fire | UL 94. Horizontal burning test. Classification 94HB |
| Reversion | Thermoplastic shrinkage can result in size reductions up to 2%. This may be accelerated in hot environments. You can read more about the causes of shrinkage by downloading this information sheet. |
| Thermal | Designed to function at temperatures from -23°C and up to +60°C. Slight size variation may occur at temperature extremes. |
| UV light | Resistant to PVC degradation |
| Warranty | Two years. Visit our policies page for more information about warranties. |
Flexi Tred's one-piece construction means installation is simple
- Supplied in convenient roll format
- Easy to cut to size and shape
- Contours to the subfloor
We recommend adhering your mat to the subfloor using an adhesive suitable for heavy-duty or wet areas. Suitable options include F Ball’s Styccobond F73 PLUS, a single-pack, heavy-duty flooring adhesive designed for installing a wide range of floorcoverings; Styccobond F81, a solvent-free, two-part epoxy adhesive specifically formulated for use in areas exposed to surface water; or Styccobond F84, a two-part reactive epoxy adhesive ideal for securing a variety of sheet floorcoverings.
Keeping Flexi Tred Xtra looking good is easy
- Easy to clean with a vacuum or mop
- No special cleaning tools needed
