Zed Chex

Anti-fatigue and slip-resistant workplace matting in a checker-plate design.

Versatile and incredibly durable, Zed Chex provides both comfort underfoot and excellent slip resistance.


Our patented high density foam has been thermally fused with a robust, checker-plate design to create a multi-purpose mat that can be used in any environment. Resistant to chemicals, oils and acids, Zed Chex is ideal for workplaces where employees need cushioning underfoot and there's light spillages and debris.

  • Flexible formats: Comes in 18m rolls and standard modules
  • Simple installation: Easy to cut to fit on site, contours to uneven surfaces
  • Easy to maintain: Simply lift or roll to clean, no special tools needed

Need to highlight a route or mark out an area? This product also comes as Zed Chex Plus, which features yellow edging around the mat for extra visibility.

FeaturesBenefits
Features And Benefits Foam Construction 23
Made from minimal-wear foam that won't deaden
Features And Benefits Reduces Fatigue 17
High wear resistance and resilience
Features And Benefits Checker Plate Surface 52
Checker plate vinyl surface
Features And Benefits Slip Resistant 02
Extra slip resistance
Features And Benefits Foam Construction 23
Patented foam construction
Features And Benefits Boosts Productivity 18
Reduces standing fatigue and boosts productivity
Features And Benefits Comes In Rolls And Modules 11
Comes in 18m rolls and standard modules
Features And Benefits Easy Installation 09
Quick to install
Black
Black with yellow edging
Zed Chex Zed Chex Plus
Height 13mm (1/2") 13mm (1/2")
Standard roll options 18 x 0.91m (60' x 3') 18 x 0.91m (60' x 3')
18 x 1.22m (60' x 4')
Standard module options 0.6 x 0.91m (2' x 3') 0.6 x 0.91m (2' x 3')
0.91 x 1.5m (3' x 5') 0.91 x 1.5m (3' x 5')
0.91 x 3m (3' x 10') 0.91 x 3m (3' x 10')
0.91 x 6m (3' x 20') 0.91 x 6m (3' x 20')
Weight 7.4kg/m2 (1.5 lb/sq.ft.) 7.4kg/m2 (1.5 lb/sq.ft.)


Surface modules are supplied with factory fitted PVC ramped edging to four sides


Acoustic Excellent sound absorption properties.
Anti-fatigue ASTM D2362 = 23
Composition
Vinyl foam/vinyl wear layer.
Thermal
Designed to function at temperatures from -23°C and up to +60°C. Slight size variation may occur at temperature extremes.
Warranty
Two years. Visit our policies page for more information about warranties.

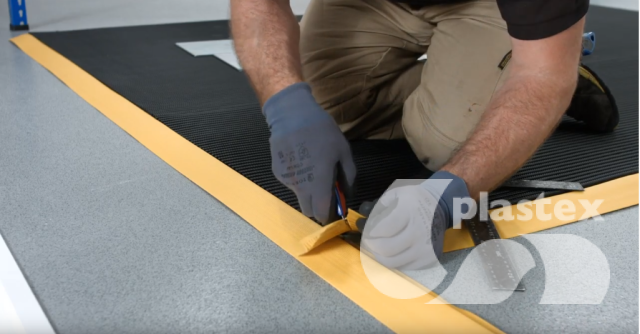

Zed Chex's one-piece construction means installation is simple

  • Comes in rolls or modules for quick installation
  • Easy to cut to size and shape
  • No special tools needed

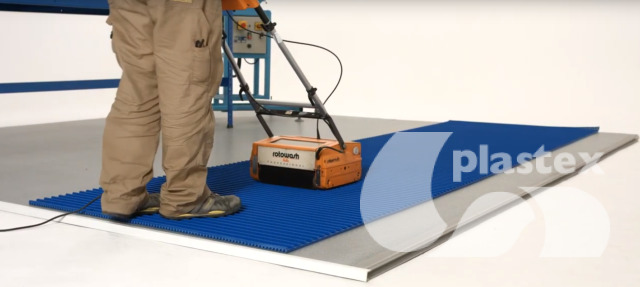

Keeping Zed Chex looking good is easy

  • Easy to handle
  • Simply lift or roll to clean with a high pressure hose

Also ideal for workplaces where spillages are likely and employees are on their feet:
